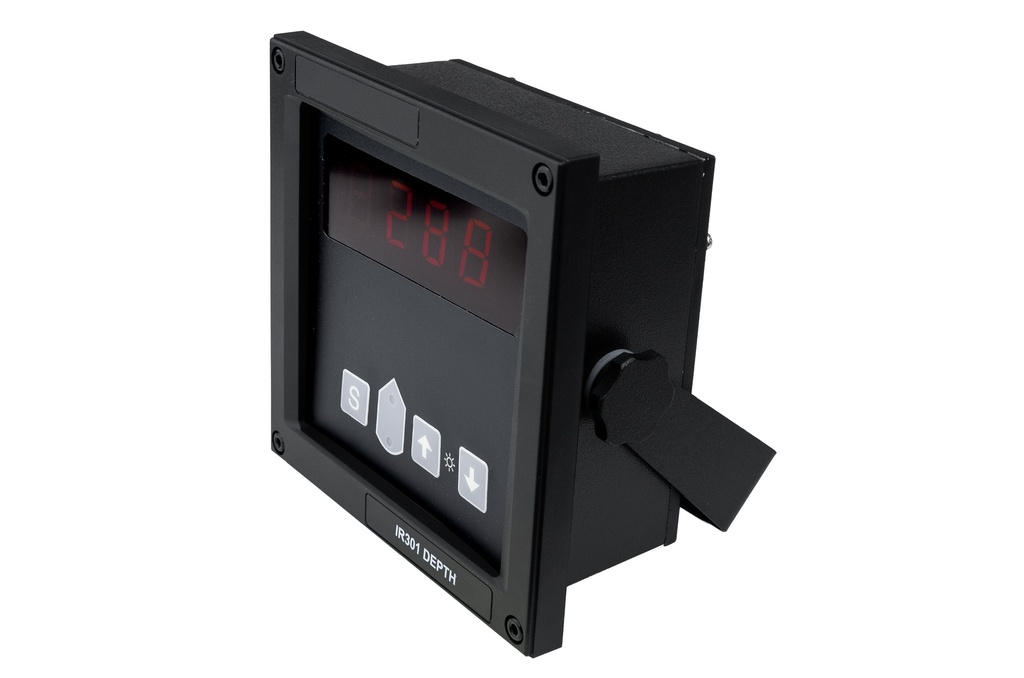

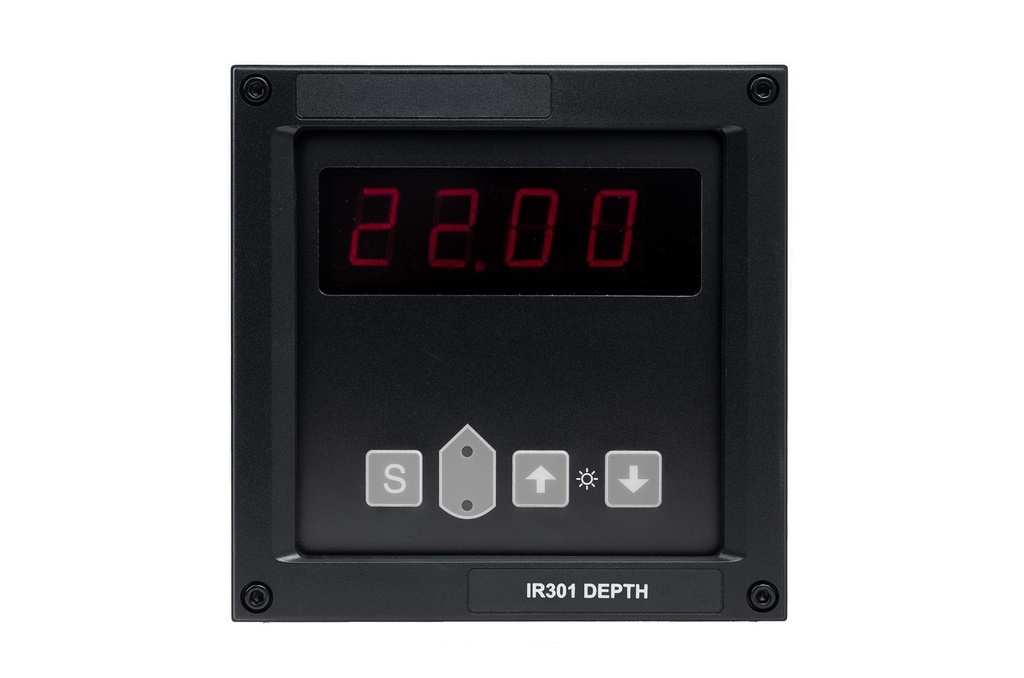

The SKIPPER IR 301 is a remote depth repater using NMEA0183 signals. It gives accurate digital depth indication based on signals from the SKIPPER echo sounders. SKIPPER IR 301 can also be used with echo sounders from other manufacturers, when these have NMEA 0183 output.
Description
Features
- Depth repeater
- Alarms
- Shows position of transducer in use
- Bracket or panel mounting
| Part number: | ENIR301-SA |
| Power supply: | DC: 10-40 V |
| Power consumption: | 3 W at 24 VDC |
| Display: | 7 segments 20x11 mm digital readout |
| Cut-out dimensions: | 124x124 mm. bracket or panel mounting |
| Front plate: | 144x144 mm |
| Depth: | 59 mm |
| Weight: | 1 kgs |
| IP rating: | 56 |
| Output: | NMEA0183 |
| Inputs: |
|
| Classifications: |
|
| Service: | Available in most major harbours, world-wide through extensive dealer network |
