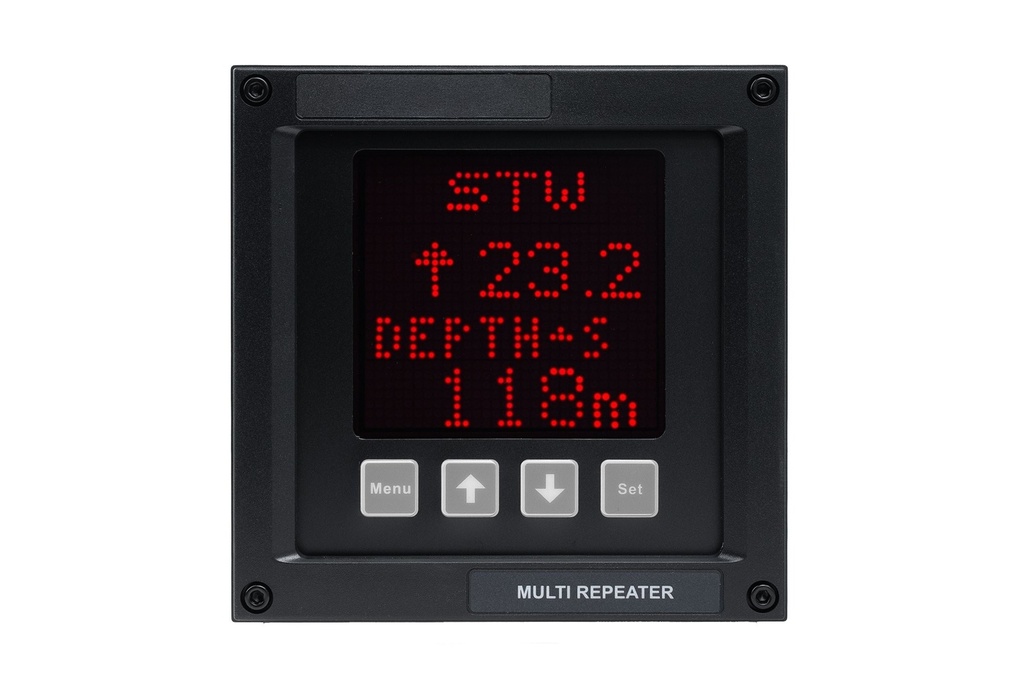

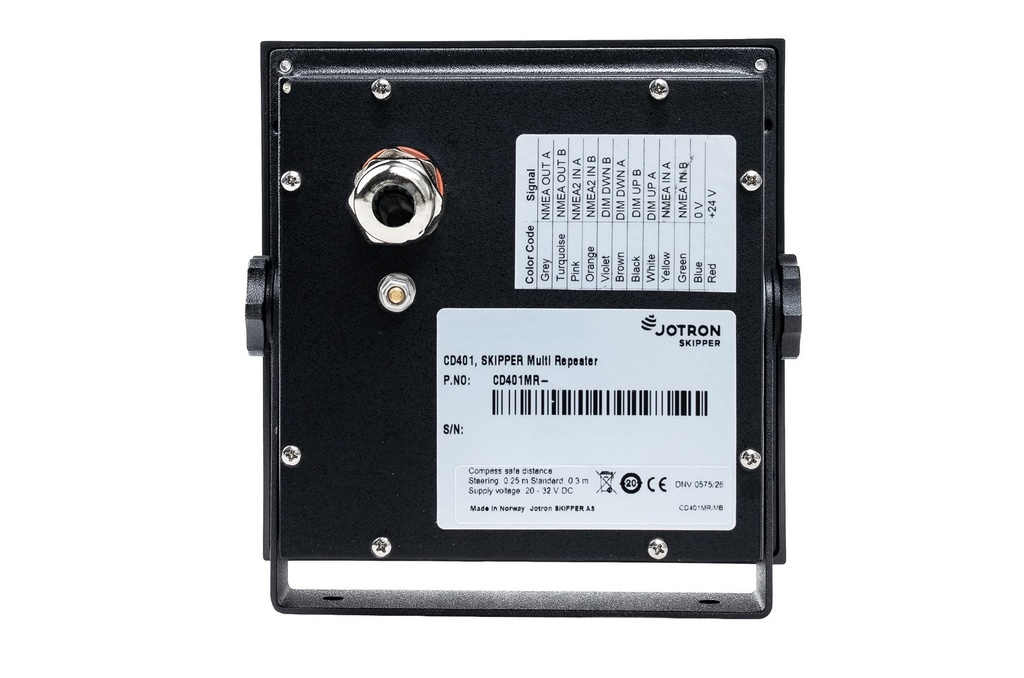

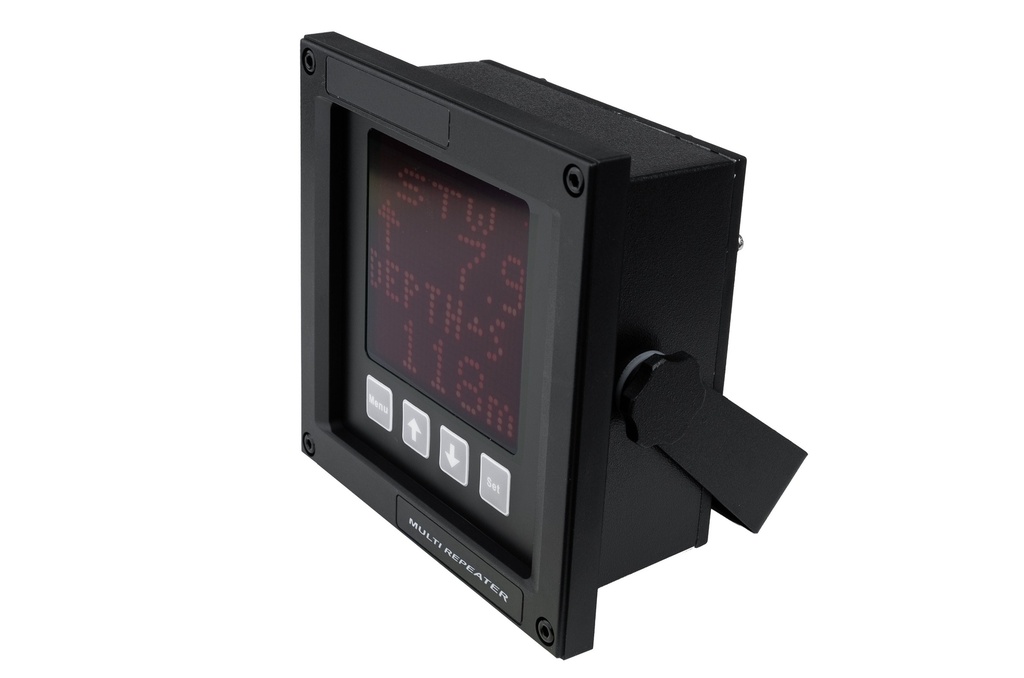

The SKIPPER CD401MR is a remote multirepeater for NMEA0183 signals. It is designed for use with SKIPPER products together with products from other manufacturers, when these use NMEA 0183 output.
Description
Features
- Compact multirepeater
- Depth below surface, keel and transducer
- Speed over ground and through water
- Distance, total/trip for both ground and water
- Heading, true, magnetic and relative
- Rotation, rate of turn and direction
- Wind speed and direction (true, magnetic and relative)
- Temperature in water and air
- Drive, RPM, propeller pitch and rudder position
- Clock UTC, local time and expected time of arrival
- Current, direction and speed (Only available in CD401MR-SB version)
Part number | CD401MR-SC |
Power supply: | DC: 18-32 V |
| Power consumption: | Up to 4 lines with DOT LED |
| Display output: |
|
| Mounting dimensions: | 124x124 mm. bracket or panel mounting. Brackets included. |
| Front plate: | 144x144 mm to DIN standard |
| Depth: | 59 mm |
| Weight: | 1 kgs |
| IP rating: | 56 |
| Inputs: |
|
Classifications: |
|
Service: | Available in most major harbours, world-wide through extensive dealer network |
