Marine Chilled Water Air Handler 24000 Btu Copper Evaporator 230v 50/60 Hz
0%
Off
Marine Chilled Water Air Handler 24000 Btu Copper Evaporator 230v 50/60 Hz
1Part No:
ENT-HT583
Brands:
Mabru Power Systems
Country of Origin:
United States
Category:
Marine Air Conditioners

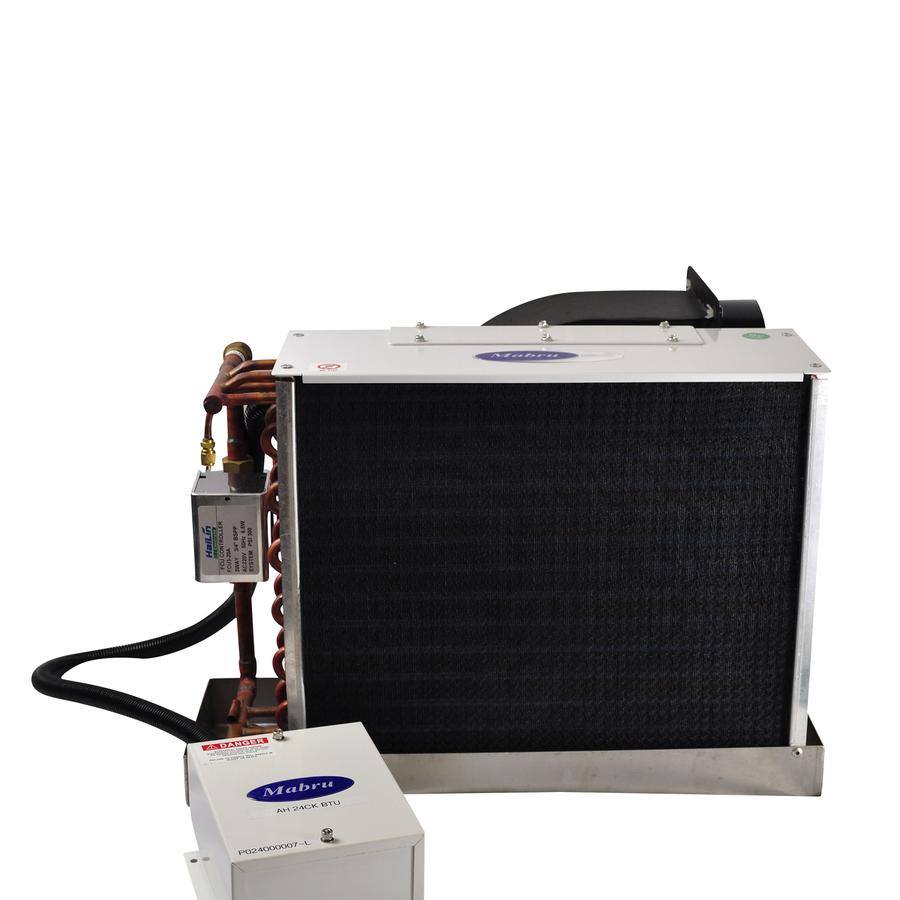

MABRU CHILLED WATER AIR HANDLER
Chiller Air Handler, Copper Fin antimicrobial, It includes: water valve, control digital touch screen, electric heat, stainless base, high static quiet fan blowers, 230V. 17% more efficient than aluminium fin coils, better dehumidifier, better cooling and heating, lasts much longer.
- Resists mold and bacteria
- Reduces odor
- Enhanced heat transfer
- Higher Efficiency
- Copper Antimicrobial Evaporators
- Stainless steel chassis, welded drains
- High static pressure ball bearings blowers with auto mode
Specifications Mabru AH 24K
| MODEL NUMBER | AH24K |
| Cooling Capacity (Btu/h) | 24,000 |
| Heating Capacity (Btu/h) | 24,000 |
| Power Source | 230V 50/60 Hz |
| Cooling Amp Draw | 1.8 |
| Heating Amp Draw | 14.8 |
| Fan Blower (CFM H/M/L) | 830/710/620 |
| Refrigerant | n/a |
| Minimum Air Duct Size (in) | 7 |
| Minimum Return Air Grille Size (sq. in) | 180 |
| Minimum Supply Air Grille Size (sq. in) | so |
| Seawater Pipe (in) | 3/4 |
| Pipe size (npt, in) | 3/4 |
| Net Weight (lbs) | 40 |
| Measurements (W/D/H) | 22/15/16.75 |
