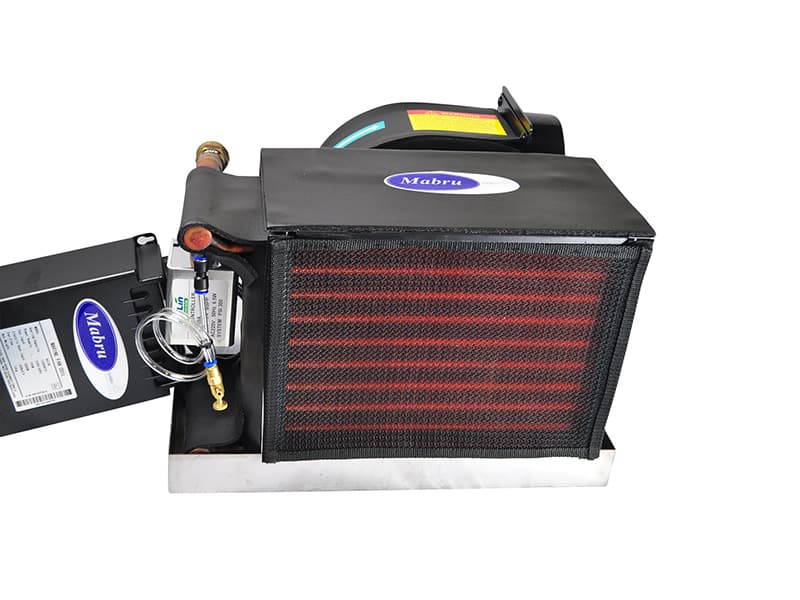

MABRU CHILLED WATER AIR HANDLER
Chiller Air Handler, Copper Fin antimicrobial, It includes: water valve, control digital touch screen, electric heat, stainless base, high static quiet fan blowers, 230V. 17% more efficient than aluminium fin coils, better dehumidifier, better cooling and heating, lasts much longer.
- Resists mold and bacteria
- Reduces odor
- Enhanced heat transfer
- Higher Efficiency
- Copper Antimicrobial Evaporators
- Stainless steel chassis, welded drains
- High static pressure ball bearings blowers with auto mode
Specifications Mabru AH 12K
| MODEL NUMBER | AH12K |
| Cooling Capacity (Btu/h) | 12,000 |
| Heating Capacity (Btu/h) | 12,000 |
| Power Source | 230V 50/60 Hz |
| Cooling Amp Draw | 1 |
| Heating Amp Draw | 9.7 |
| Fan Blower (CFM H/M/L) | 580/495/410 |
| Refrigerant | n/a |
| Minimum Air Duct Size (in) | 5 |
| Minimum Return Air Grille Size (sq. in) | 120 |
| Minimum Supply Air Grille Size (sq. in) | 32 |
| Seawater Pipe (in) | 3/4 |
| Pipe size (npt, in) | 3/4 |
| Net Weight (lbs) | 28 |
| Measurements (W/D/H) | 17.5/13/12.25 |
MABRU CHILLED WATER AIR HANDLER
Chiller Air Handler, Copper Fin antimicrobial, It includes: water valve, control digital touch screen, electric heat, stainless base, high static quiet fan blowers, 230V. 17% more efficient than aluminium fin coils, better dehumidifier, better cooling and heating, lasts much longer.
- Resists mold and bacteria
- Reduces odor
- Enhanced heat transfer
- Higher Efficiency
- Copper Antimicrobial Evaporators
- Stainless steel chassis, welded drains
- High static pressure ball bearings blowers with auto mode
Specifications Mabru AH 12K
| MODEL NUMBER | AH12K |
| Cooling Capacity (Btu/h) | 12,000 |
| Heating Capacity (Btu/h) | 12,000 |
| Power Source | 230V 50/60 Hz |
| Cooling Amp Draw | 1 |
| Heating Amp Draw | 9.7 |
| Fan Blower (CFM H/M/L) | 580/495/410 |
| Refrigerant | n/a |
| Minimum Air Duct Size (in) | 5 |
| Minimum Return Air Grille Size (sq. in) | 120 |
| Minimum Supply Air Grille Size (sq. in) | 32 |
| Seawater Pipe (in) | 3/4 |
| Pipe size (npt, in) | 3/4 |
| Net Weight (lbs) | 28 |
| Measurements (W/D/H) | 17.5/13/12.25 |
