Marine Chilled Water Air Handler 10000 Btu Copper Evaporator 230v 50/60 Hz
0%
Off

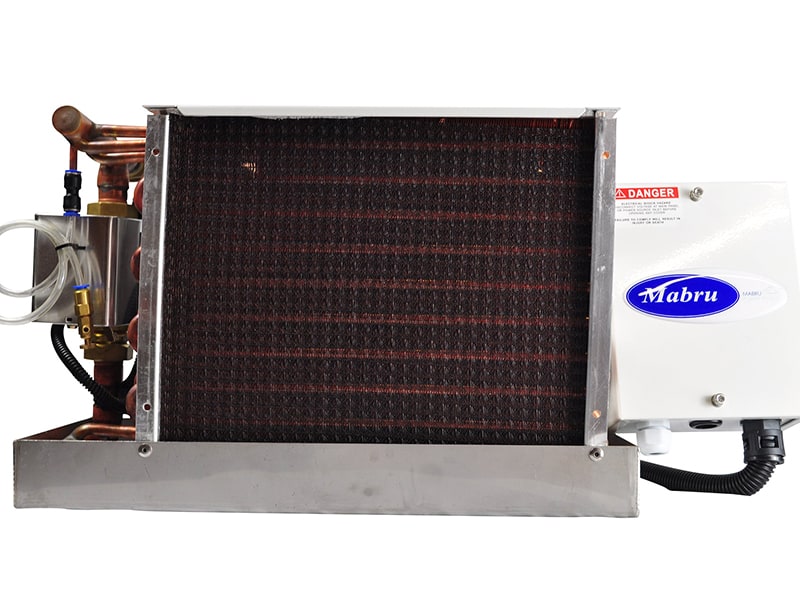

MABRU CHILLED WATER AIR HANDLER
Chiller Air Handler, Copper Fin antimicrobial, It includes: water valve, control digital touch screen, electric heat, stainless base, high static quiet fan blowers, 230V. 17% more efficient than aluminium fin coils, better dehumidifier, better cooling and heating, lasts much longer.- Resists mold and bacteria
- Reduces odor
- Enhanced heat transfer
- Higher Efficiency
- Copper Antimicrobial Evaporators
- Stainless steel chassis, welded drains
- High static pressure ball bearings blowers with auto mode
Specifications Mabru AH 10K
MODEL NUMBER | AH10K |
Cooling Capacity (Btu/h) | 10,000 |
Heating Capacity (Btu/h) | 10,000 |
Power Source | 230V 50/60 Hz |
Cooling Amp Draw | 0.9 |
Heating Amp Draw | 5.2 |
Fan Blower (CFM H/M/L) | 400/380/300 |
Refrigerant | n/a |
Minimum Air Duct Size (in) | 5 |
Minimum Return Air Grille Size (sq. in) | 120 |
Minimum Supply Air Grille Size (sq. in) | 32 |
Seawater Pipe (in) | 3/4 |
Pipe size (npt, in) | 3/4 |
Net Weight (lbs) | 22 |
Measurements (W/D/H) | 17.5/13/12.25 |
