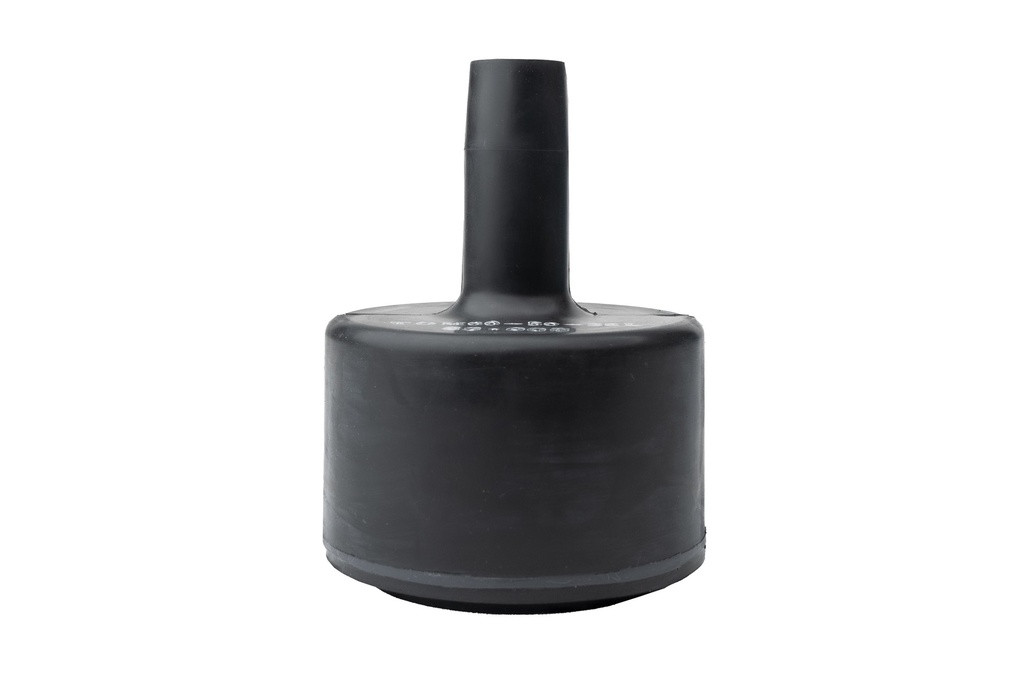

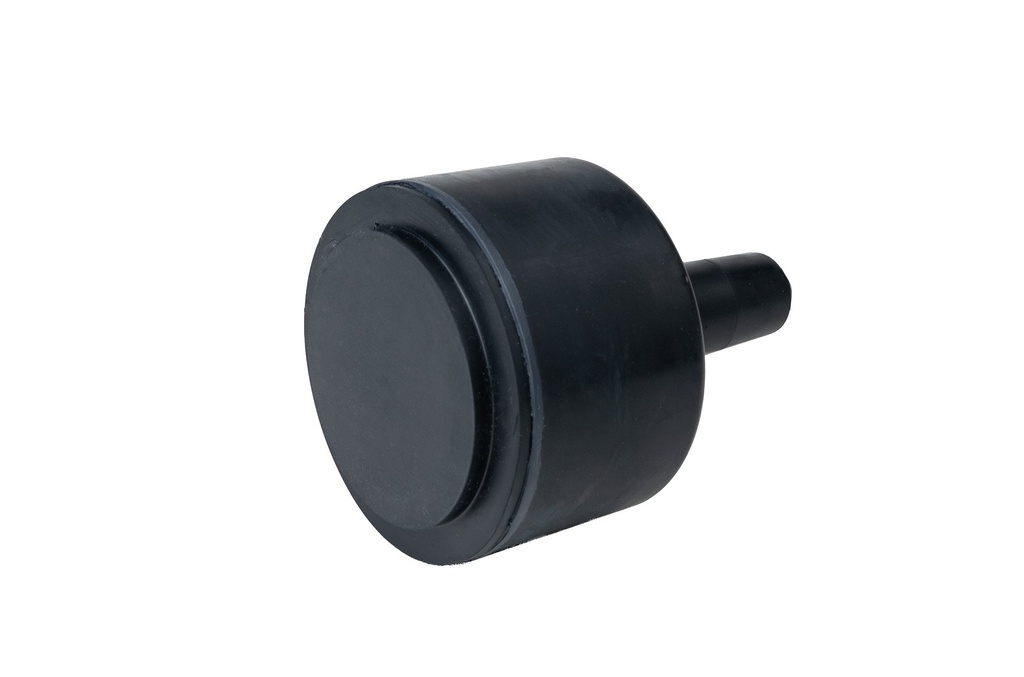

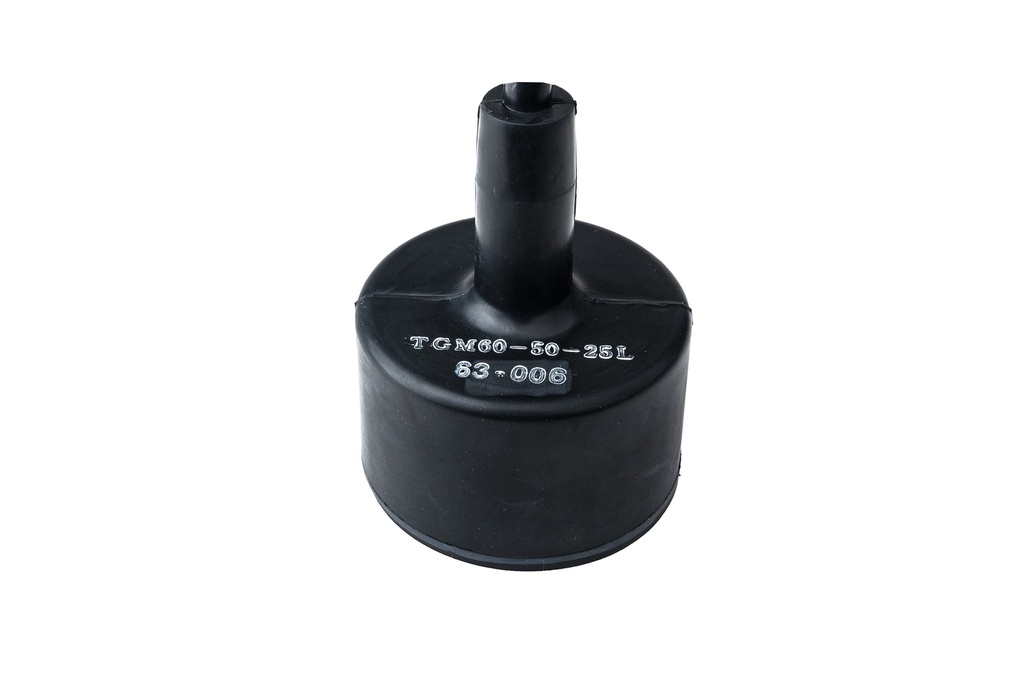

SKIPPER 50 kHz transducers are all IMO wheelmarked with MED-B for all SKIPPER echo sounders. Max. range is approx. 750 m.
Description
Features
- 50 kHz navigational transducer
- Different adaptors to different bottom arrangement
- Optional cable length (25 and 40 m)
- Designed for all SKIPPER Echo saounders
- Ceramic type
| Product: | 50 kHz navigational transducer |
| Part number: | Multiple options |
| Frequency: | 50 kHz |
| Range: | Approx. 750 m depending on water/bottom quality |
| Material: | Rubber |
| Weight: | 9 kgs |
| Cable length: | 25/40 m |
| Beam: | 44 degrees |
| Diameter: | 10 cm |
| Classifications: |
|
Available in these variants:
| ETN050T (Cable length 25 m) | for mounting in ETNST and ETNSTC |
| ETN050XT (Cable length 40 m) | for mounting in ETNST and ETNSTC |
| ETN050G (Cable length 25 m) | for mounting in:
|
| ETN050XG (Cable length 40 m) | for mounting in:
|
| ETN050T-ICE (Cable length 25 m) | for mounting in ETNSTCI Ice protected tank |
| ETN050XT-ICE (Cable length 40 m) | for mounting in ETNSTCI Ice protected tank |
| ETN050TA (Cable length 25 m) | for mounting in ETNALC Aluminium tank |
| ETN050XTA (Cable length 40 m) | for mounting in ETNALC Aluminium tank |
| ETN050GI (Cable length 25 m) | for mounting in:
|
| ETN050XGI (Cable length 40 m) | for mounting in
|
| ETN050BEL (Cable length 25 m) | for mounting in ETNSLJB |
| ETN050BELX (Cable length 40 m) | for mounting in ETNSLJB |
