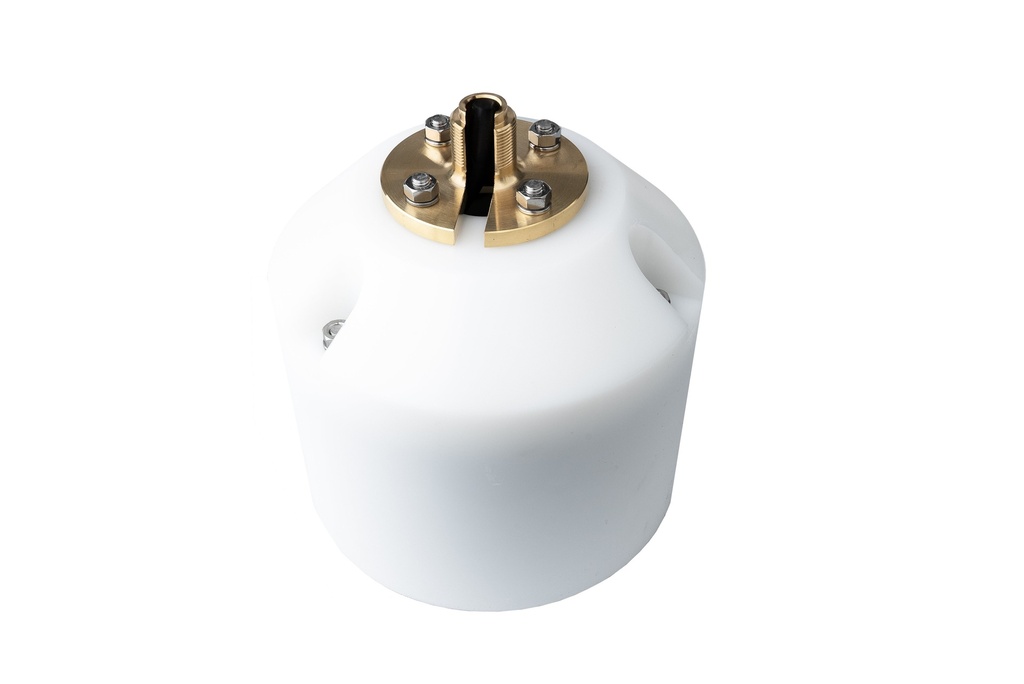

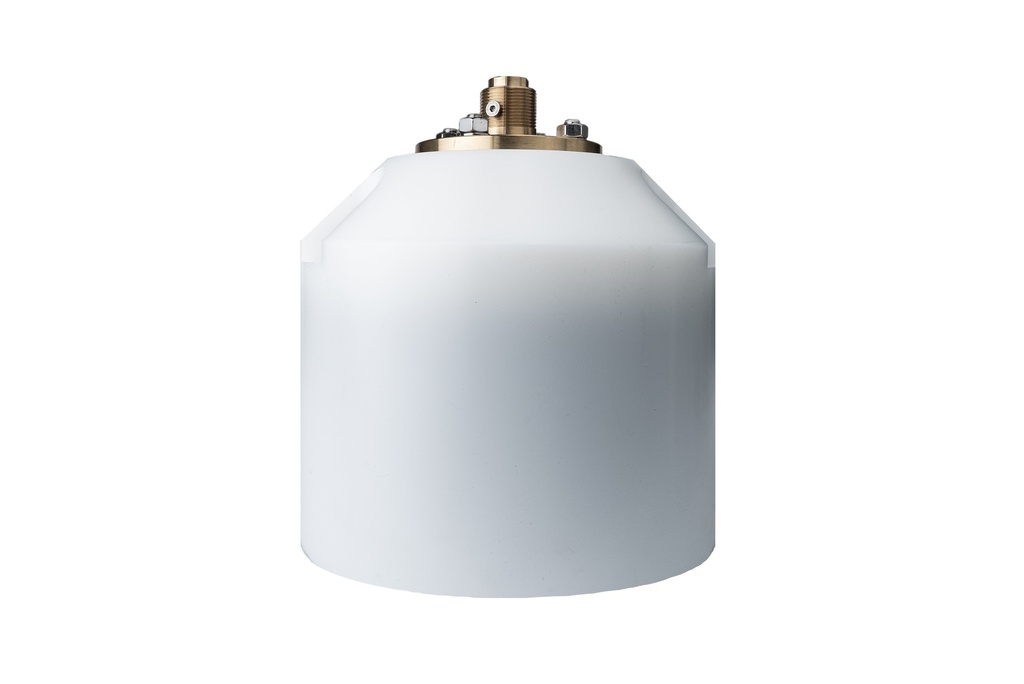

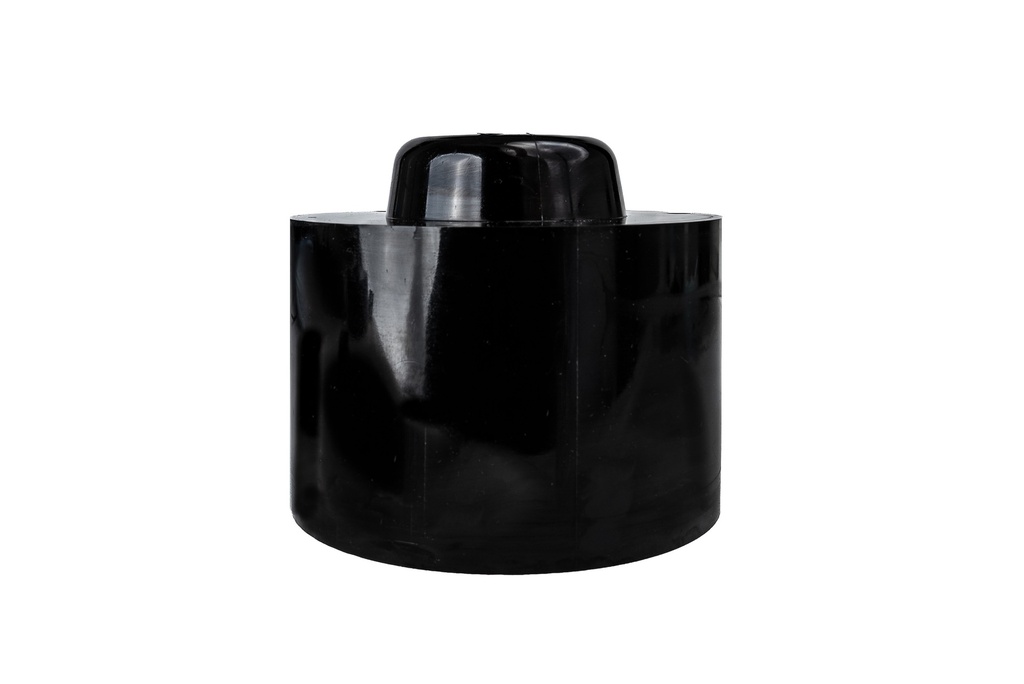

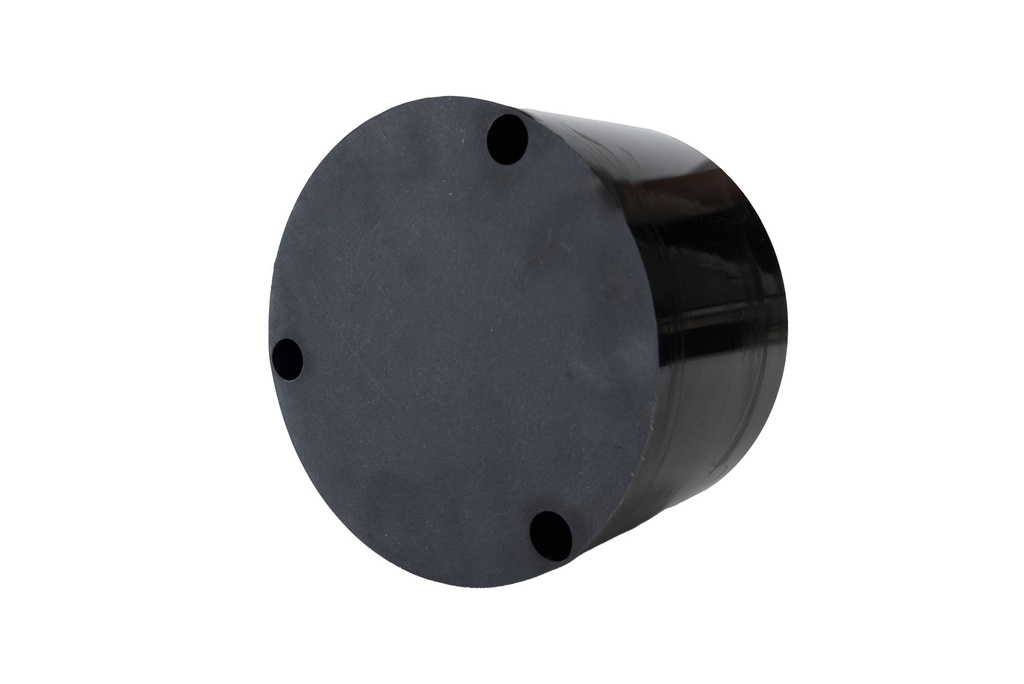

The 38 kHz transducer is IMO wheelmarked with SKIPPER ESN200. It is able to reach down to approx. 1500 m in good conditions.
Description
Features
- 38 kHz navigational transducer
- Different adaptors to different bottom arrangement
- Ceramic type
| Product: | 38 kHz transducer |
| Part number: | Multiple options |
| Frequency: | 38 kHz |
| Range: | Approx. 1500 m - depending on water/bottom quality |
| Material: | Rubber |
| Weight: | 12 kgs |
| Cable length | 40 m |
| Beam: | 16 degrees |
| Diameter: | 20 cm |
| Classification: | MED-B with SKIPPER ESN200 only |
Available in these variants:
| ETN038T | for mounting in:
|
| ETN038G | for mounting in SB-200-ECHO gate valve |
