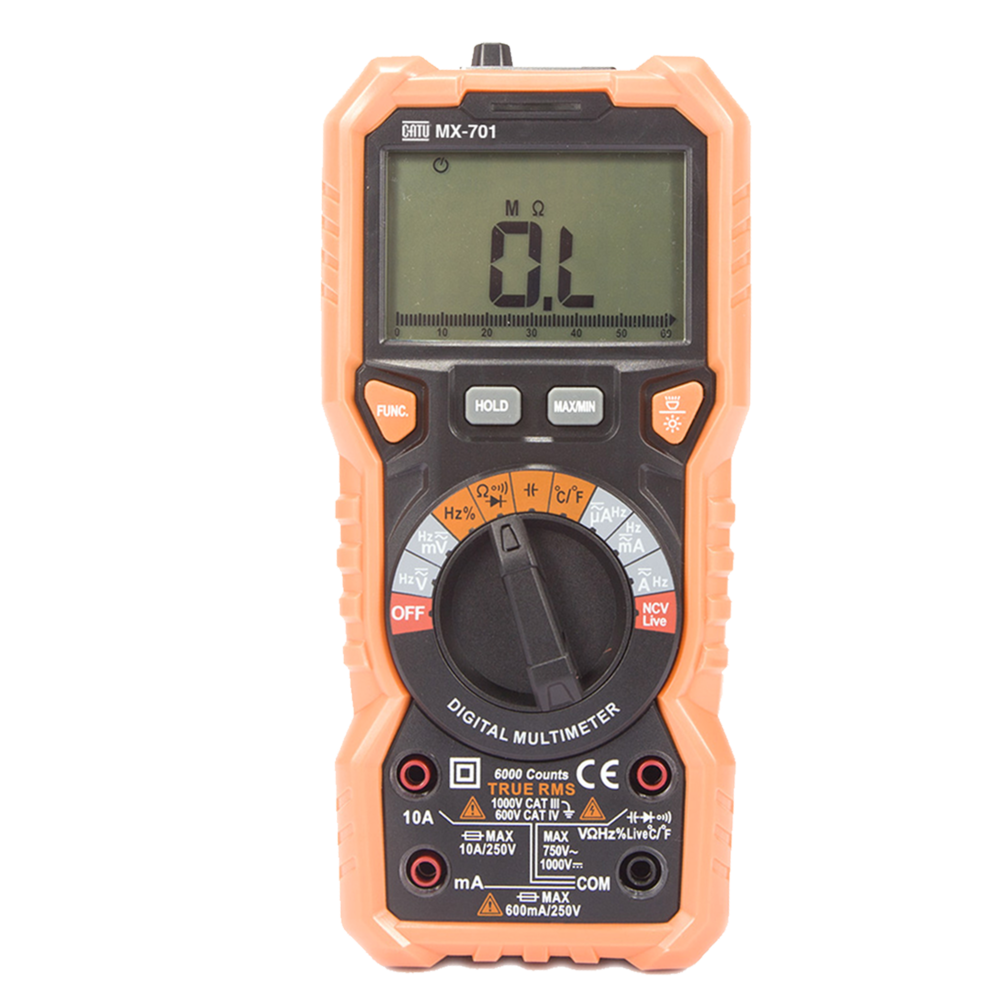

The MX-701 is a 3 1/2 digit LC digital multimeter.
It measures voltages up to 750 V AC and 1000 V DC, AC and DC currents up to 10 A as well as resistances, capacitances and temperature.
It can also be used to check electronic transistors.

The MX-701 is user-friendly and features auto-calibration, auto power-off, max. measurement, value storage and backlighting.

Application:

• Measures voltage (AC/DC), current (AC/DC), resistance, inductance and temperature.
• DC voltage: 600 mV/6/60/600V/1000 V ± (0.8% + 5d), 1000 V ± (0.5% + 3d)
• AC voltage: 600 mV/6/60/600/750 V ± (1% + 5d), 750 V ± (0.8% + 5d)
• DC current: 600mA/6 000mA/60mA/600mA ± (1.2% + 3d), 10A ± (1.2% + 3d)
• AC current: 600mA/6 000mA/60mA/600mA ± (1.5% + 3d), 10A ± (1.5% + 3d)
• Resistance: 600Ω ± (1.0% + 3d), 6KΩ/60KΩ/600KΩ ± (1.0% + 3d), 6MW ± (1.5% + 3d), 60MW ± (1.5% + 3d)
• Temperature (with probe, supplied): -20°C-1000°C/ 0-1800°F from -20 to 0°C/-0 to +50°F ±(5% + 3d), from 0 to 400°C/50 to 750°F ±(1% + 2d), from 400 to 1000°C/750 to 1800°F ±(2% + 3d)
• Continuity: by buzzer (<30W)
• Capacitance: 10nF ±(4.0% + 5d), 100nF/1μF/10μF/100μF ±(4.0% + 5d), 1000mF ±(4.0% + 5d), 10/100mF±(5.0% + 5d)
• Diode control
• Transistor control

Features:

• Temperature (with the temperature probe): -20°C-1 000°C/ -4°F-1 800°F.
• Impact resistant elastomeric shell.
• True RMS response.
• Continuity & Diode test
• LCD display with backlight
• Data hold
• Non contact function NCV
• High voltage LED indication
• Flashlight enables measurements in dark easier
• Auto power off
• Battery: 2 x 1,5 V (AA)
• Dimensions: 188 x 88 x 54 mm
• Weight: 320 g (with battery)

Composition :

• 1 multimeter in cardboard box
• Batteries: 2 x 1.5V LR 06 (AA)
• 2 thermometer probes.
• 2 test probes with angled connector IP2X
• 1 user's guide
