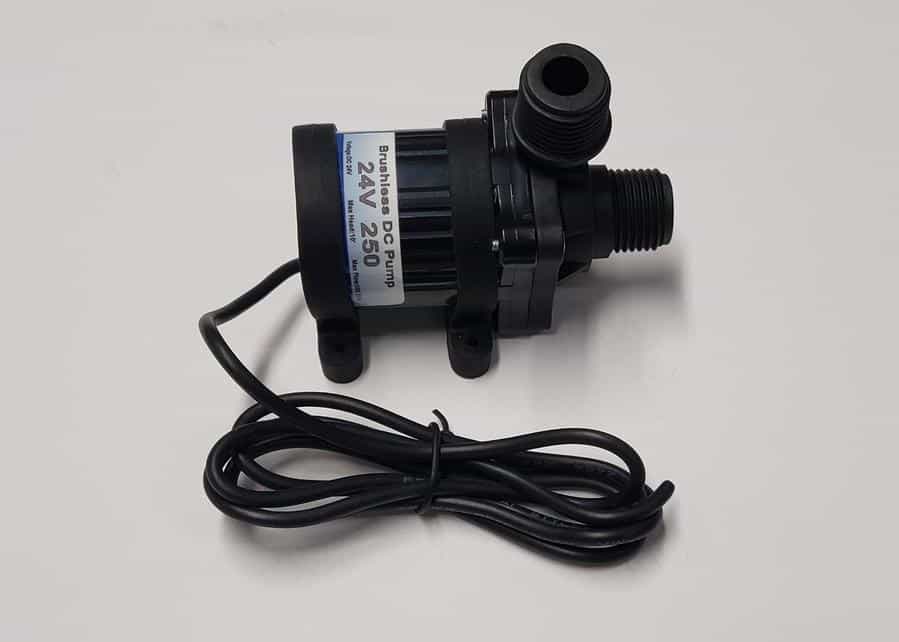

MPS Pump 250 GPH 24V 115/230V 50/60 Hz

Mabru marine air conditioning raw water pumps are small, efficient, quiet and extremely reliable. Our pumps are significantly smaller than our competitors' which allows for much easier installations in con?ned bilge spaces. We utilize permanent magnet, brushless DC motors coupled with magnetic drive, non friction impellers to maximize efficiency and durability. All of our pumps are fully submersible and ignition protected.

MPS Pump Datasheet

MODEL MPS PUMP	250	650	950	1250
Voltage/Hz	110/220VAC / 12/24VDC	110/220VAC / 12/24VDC	110/220VAC / 12/24VDC	110/220VAC / 12/24VDC
Amps@24VDC	0.75	1	1.4	1.5
Waterproof	Yes	Yes	Yes	Yes
Max Head Ft. H20	10in	22in	38in	35in
GPH	250	650	950	1250
Inlet Size (in)	1/2	1/2	3/4	1
Outlet Size (in)	1/2	1/2	3/4	1
Height (in/mm)	1.73 in/   44 mm	3.74 in/   95 mm	5.19 in/   132 mm	5.51 in/   140 mm
Width (in/mm)	3.3 in /84  mm	2.76 in/   70 mm	3.93 in/   100 mm	4.33 in/   110 mm
Length (in/mm)	3.35 in  / 85 mm	4.01 in/   102 mm	5.70 in/   145 mm	7.67 in/   195 mm
Weight (lbs/kg)	0.5 lbs/ 1.1 kg	1.55 lbs/ 3.41 kg	2.5 lbs/ 5.5 kg	4.50 lbs / 9.9 kg
