SKIPPER ESN200 IMO wheelmarked echo sounder

(0 review)
SKU:
ESN200
Product Image

SKIPPER ESN200 IMO wheelmarked echo sounder

Select Options
Brand: Jotron
Origin of Goods: Norway
  • Best Quality Products
Guaranteed safe checkout
Contact Us

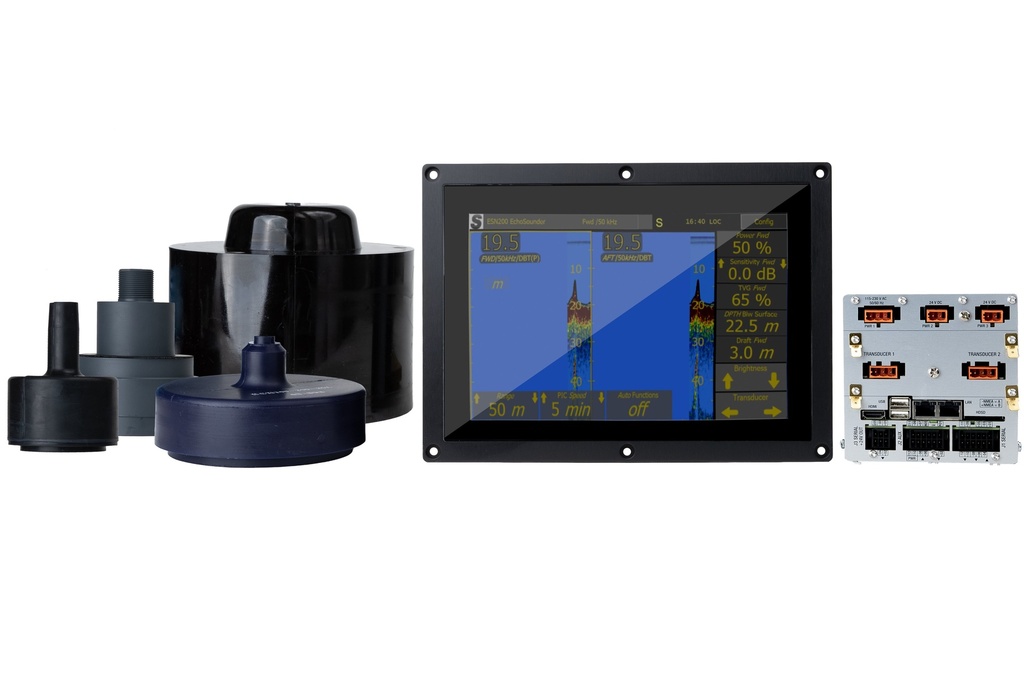

The SKIPPER ESN200 is a navigation echo sounder with a black box and a 10.1" touch display. The echo sounder graphics are continuously shown on the screen along with complete navigational details. Most of the functions are automatic. The SKIPPER ESN200 is a dual frequency echo sounder.

Description

Features
  • IMO wheelmarked with MED-B
  • Navigation echo sounder
  • Dual frequency
  • Colour 10.1" touch screen
  • Auto/Manual gain
  • Auto/Manual TVG
  • Auto/Manual range
  • Auto/Manual power
  • INS and IBS ready
  • CCS available on request
Echo sounderESN200
Functions:
  • Auto/Manual TVG
  • Auto/Manual gain
  • Auto/Manual power
  • Auto/Manual range
  • Transducer positioning
  • Internal sounder for alarm/button press
Power supply:



  • DC: 20-32 V
  • AC: 115/230 V
Power Consumption:Display unit 5W
Electronic unit 10W
Display:10.1" Touch Display

Mounting Dimensions:

  • 224.5 mm wide x 140 mm high (Cut-out)
  • 242 mm wide x 158 mm high (Outside dimensions)
Memory:


24 hours history, external logging feature over network

Ranges:

  • Selectable from 0-5 m
  • Selectable from 0-5000 m
Measuring accuracy:


Error less than 1 %

Frequencies:

  • Approved frequencies: 50/200 kHz, 200 kHz 50 kHz and 38 kHz
  • Other frequencies covered: 24, 30, 33, 100 and 210 kHz
Output power:

  • Nominal 700 W
  • Max> 1000 W
Alarms:

  • BAM compatible (IEC62923) (ALF and ALR)
  • Internal sounder
  • Relay output and AUX in/out
Calendar/clock:
 		From GPS input

Data output:

  • 2xLAN (IEC61192-1) control unit
  • 5xNMEA0183 (IEC61162-1) control unit
  • 2xAUX control unit
  • 1xRelay control unit
  • 3xNMEA0183 display unit
  • 1xLAN display unit
  • DPT, PSKDPT, DBS, DBK, ALR and ALF
Inputs:

  • 3xNMEA0183(IEC61162-1) control unit
  • 1xAUX control unit
  • 2xNMEA0183 Inputs (IEC61192-1) display
  • 1xLAN display
  • Accepting signals from GPS, gyro, alarm and draft sensor
Language:
 		English

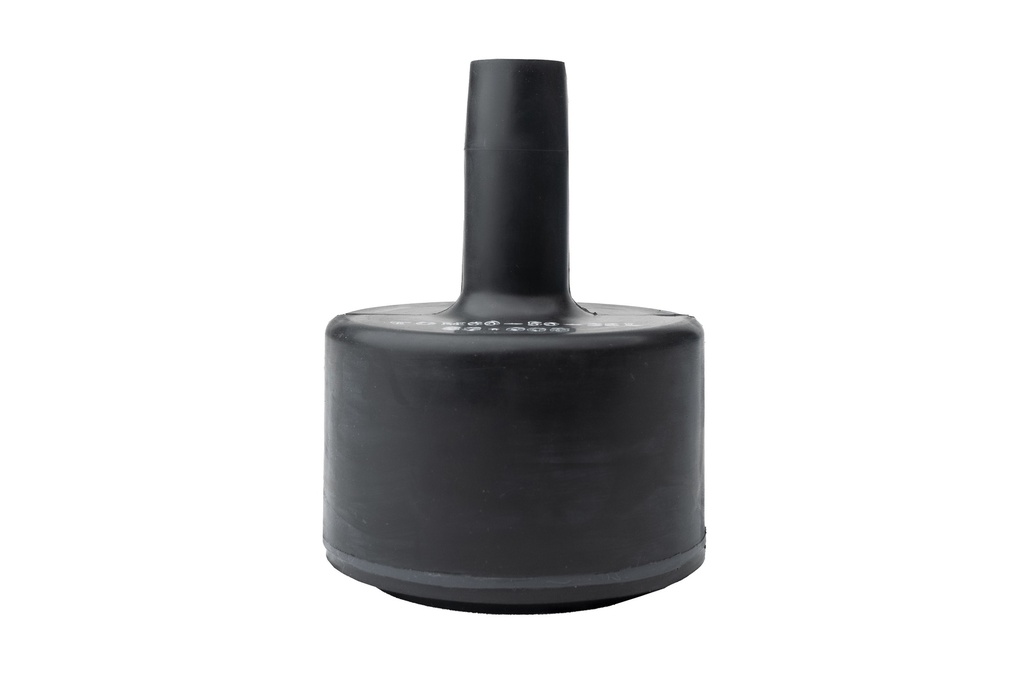

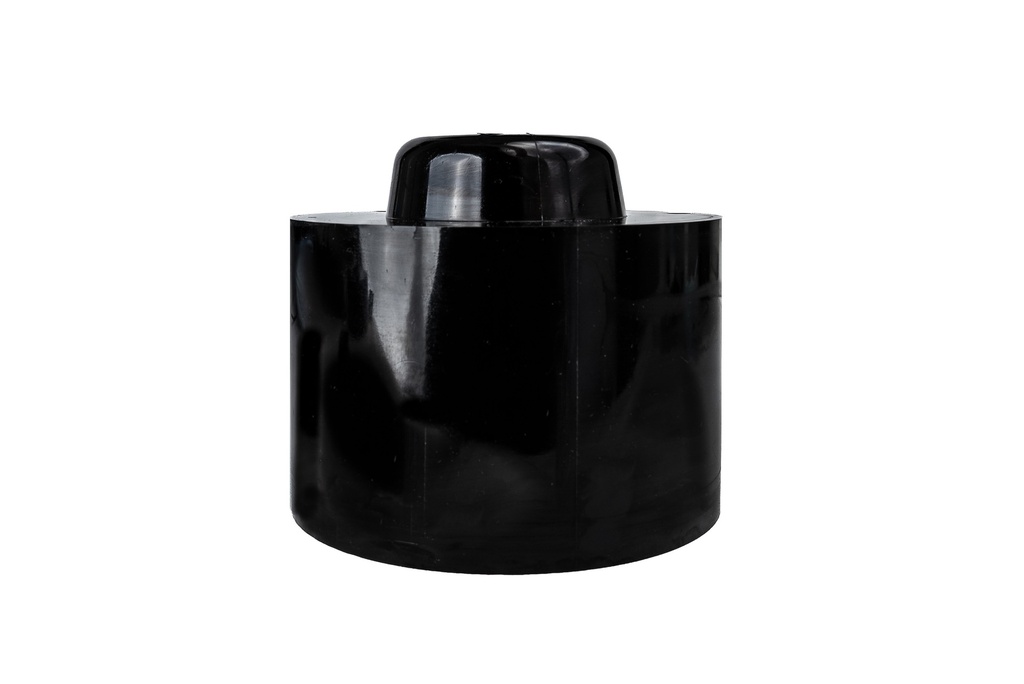

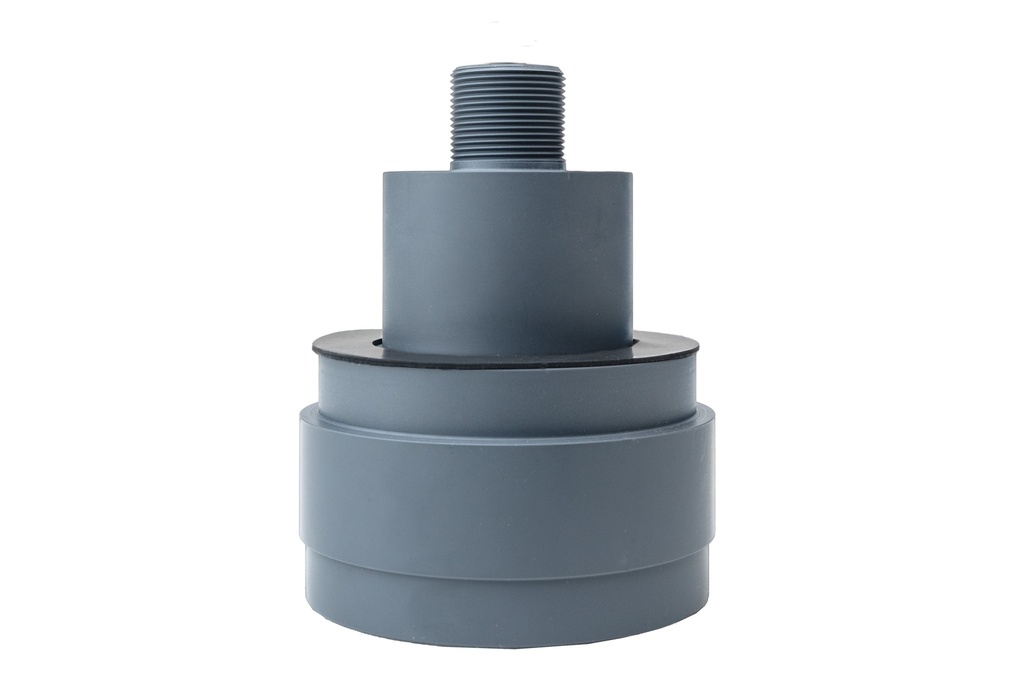

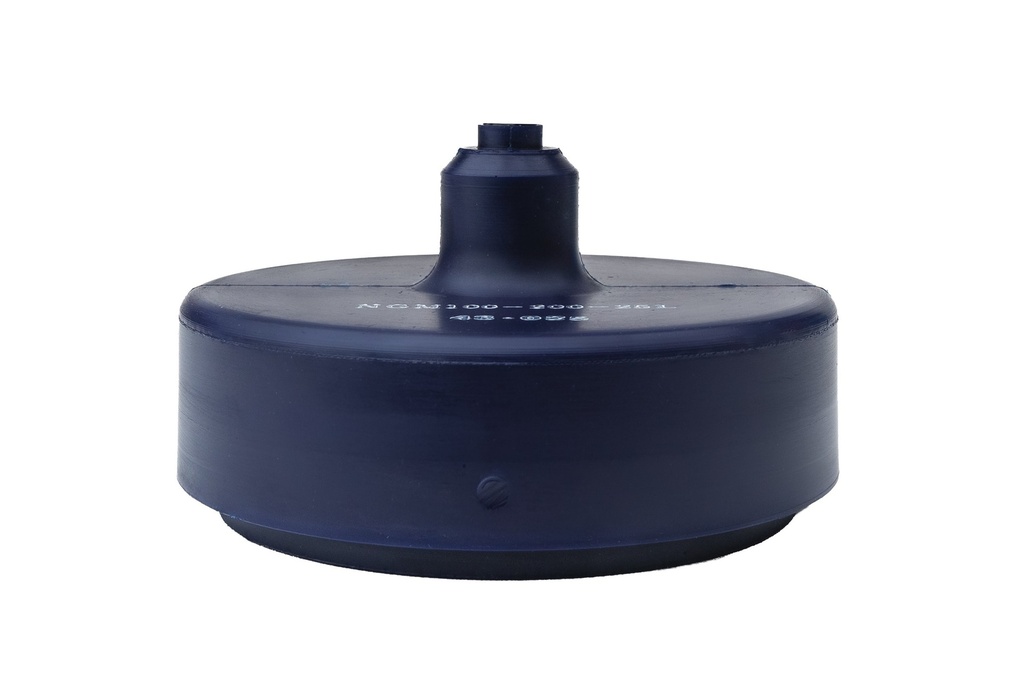

Option:

  • Remote depth indicators
  • 24 kHz transducer
  • 38 kHz transducer
  • 50 kHz transducer
  • 200 kHz transducer
  • Dual 50/200 kHz transducer
  • Retrofit plate for GDS101/GDS102
  • Remote dimmer

Printer:

  • Epson LQ-350
  • Review: service software via LAN
  • Extended internal logging by USB or SD
Classification:

  • IMO wheelmarked
  • MED-B
  • CCS
Service:
 		Available in most major harbours, world-wide through extensive dealer network
