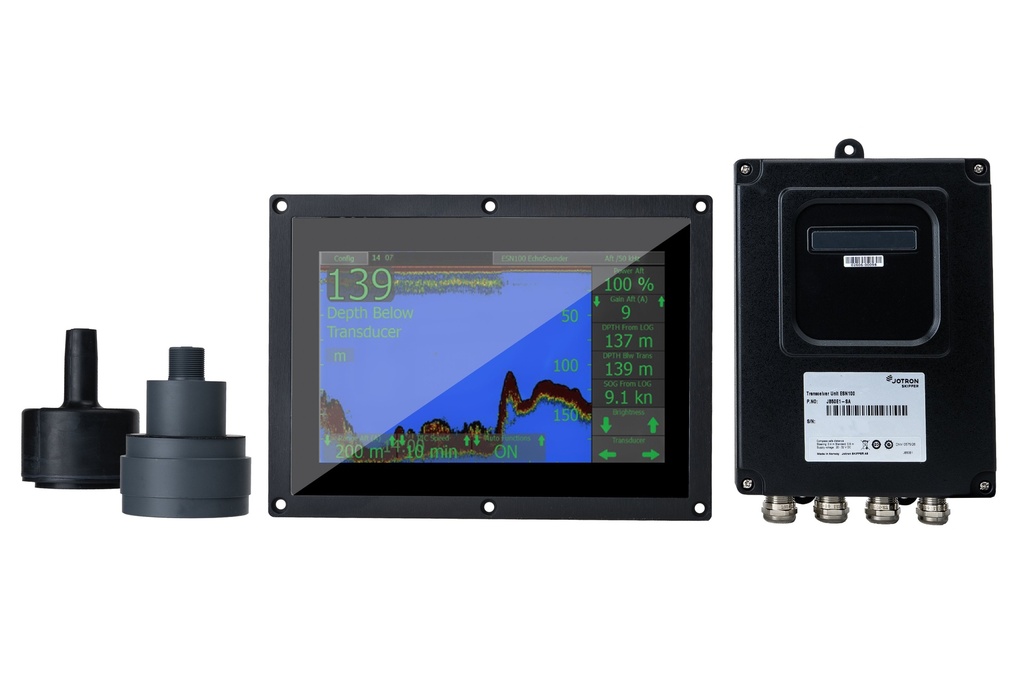

The SKIPPER The echo sounder graphics are continuously shown on the screen along with complete navigational details. Most of the functions are automatic.
Description
Features
- IMO wheelmarked with MED-B
- Navigation echo sounder
- Single frequency - 50 or 200 kHz
- Colour 9" or 10.1" touch screen
- Auto Gain
- Auto TVG
- Auto range
- Auto power
- CCS available on request
| Echo sounder | ESN100 |
|---|---|
| Functions: |
|
| Power supply: |
|
| Power consumption: |
|

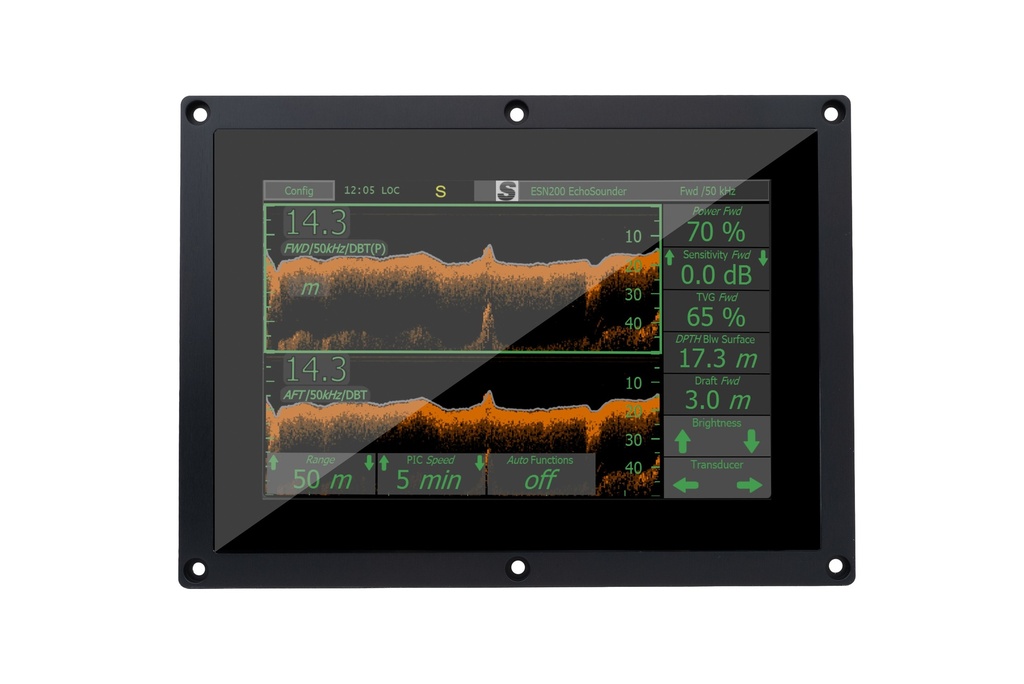

| Display: | 9" Touch Display |
| Mounting dimensions: |
|
| Memory: | 24 hours history, external logging feature over network |
| Printer: | Epson LQ-350 Review: service software via LAN. Extended internal logging, by USB or SD |
| Ranges: | Selectable from 0-1000 m |
| Measuring accuracy: | Error less than 1 % |
| Frequencies: |
|
| Output power: | Approx. 700 W |
| Alarms: | Follows IEC standards (ALF and ALR) |
| Calendar/clock: | From GPS input |
| Data output: |
|
| Inputs: |
|
| Language: | English |
| Options: |
|
| Classification: |
|
| Service: | Available in most major harbours, world-wide through extensive dealer network |
