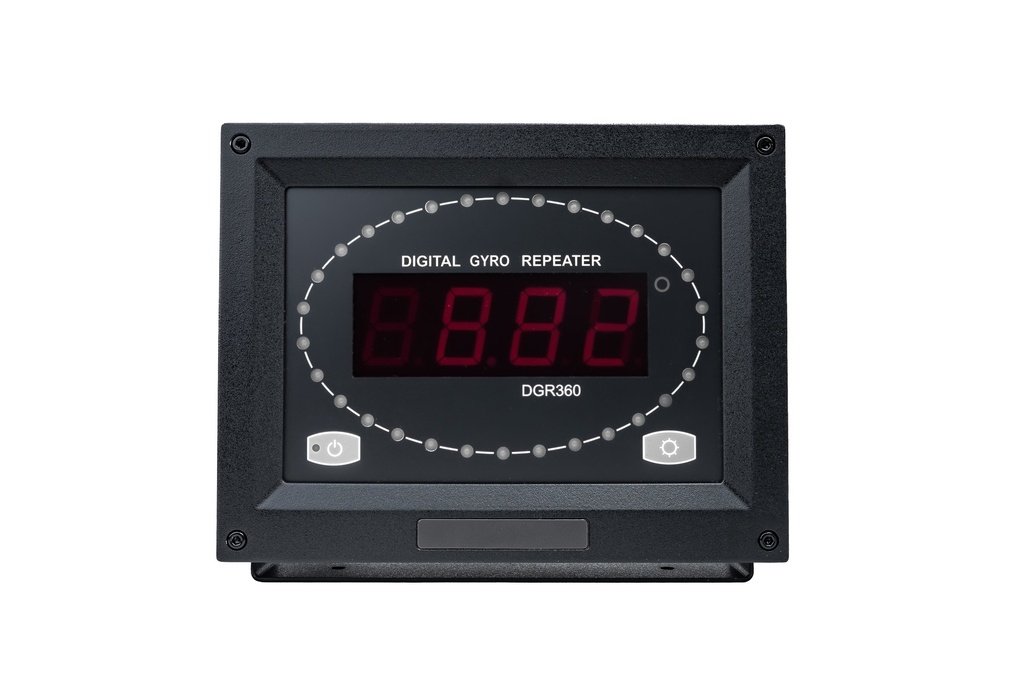

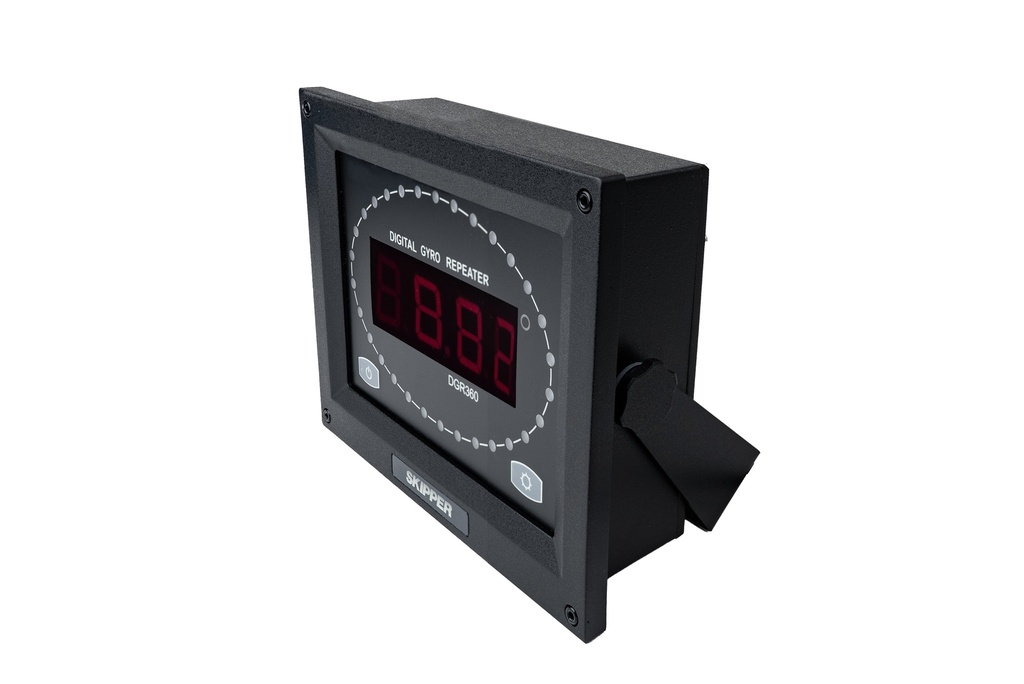

DGR 360 is a digital gyro repeater that displays the heading angle in the LED segment display and indicates the direction of turn with 30 dual-color surrounding LED’s, changing from green to red colour depending on the direction of turn.
Description
Features
- Heading angle
- Visual indication of rotation speed
- HDT/THS/HDM signals
- Bracket or panel mounting
| Part number: | DGR360-SA |
| Power supply: | DC: 20-32 V |
| Power consumption: | 2 W at 24 VDC |
| Display: | 1 line with 7 segments 30x20 mm |
| Display output: |
|
| Standard cable length: | 2 m |
| Compass safe distance: | 65 cm |
| Cut-out dimensions: | 190x158 mm. bracket or panel mounting |
| Front plate: | 220x170 mm |
| Weight: | 2 kgs |
| IP rating: | 56 |
| Output: | NMEA0183 |
| Inputs: |
|
| Classification: | IEC 60945/2002 |
| Service: | Available in most major harbours, world-wide through extensive dealer network |
