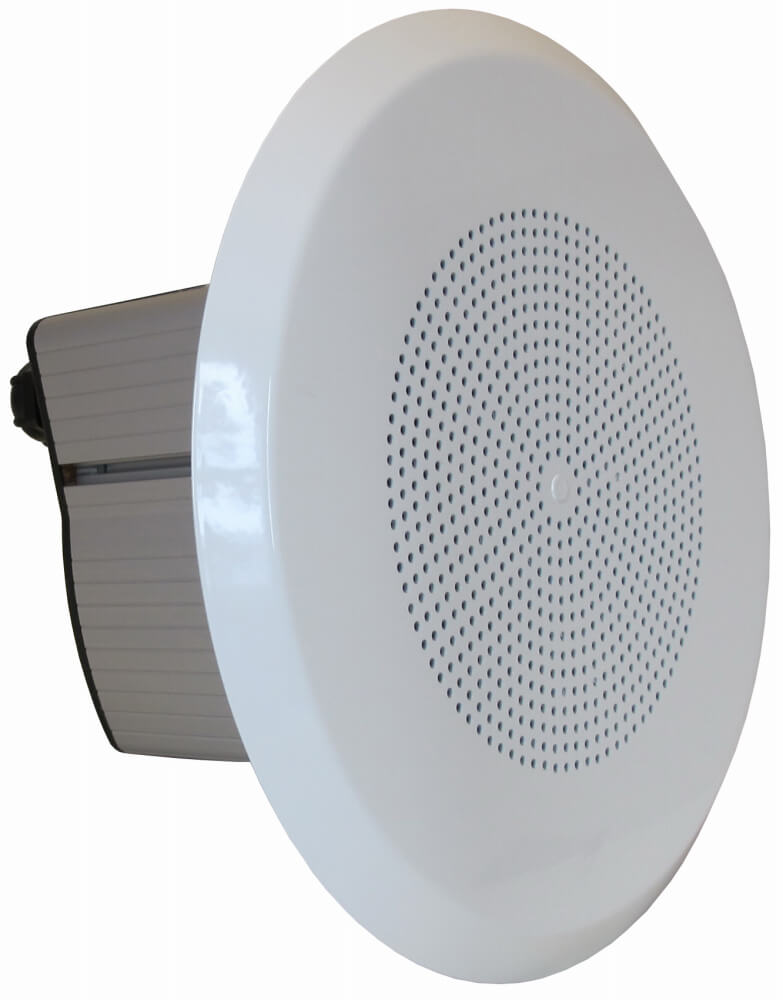

BAREEX-36(T)
A lightweight and small Ex certified ceiling speaker made from aluminium. The speaker has multiple options for transformers and tappings, so that the sound pressure level can be adjusted to an appropriate level.
BAREEX-36(T) Specifications
| Material/Color | Aluminium / Anodized - RAL9010 |
| Mounting | 4 screws |
| Termination | E-chamber / Screw terminal |
| Weight | 2.35 kg |
| IP Rating | IP54 |
| Min/Max amb temp | -20 °C / 40 °C |
| Rated power | 6 W |
| SPL 1W/1m: | 85 db |
| SPL Rated Power | 92 db |
| Effective freq. Range | 180 - 15000 Hz |
| Dispersion (-6dB) 1kHz / 4kHz | 118˚ / 24˚ |
| Options | Certification / Impedance / Power |
