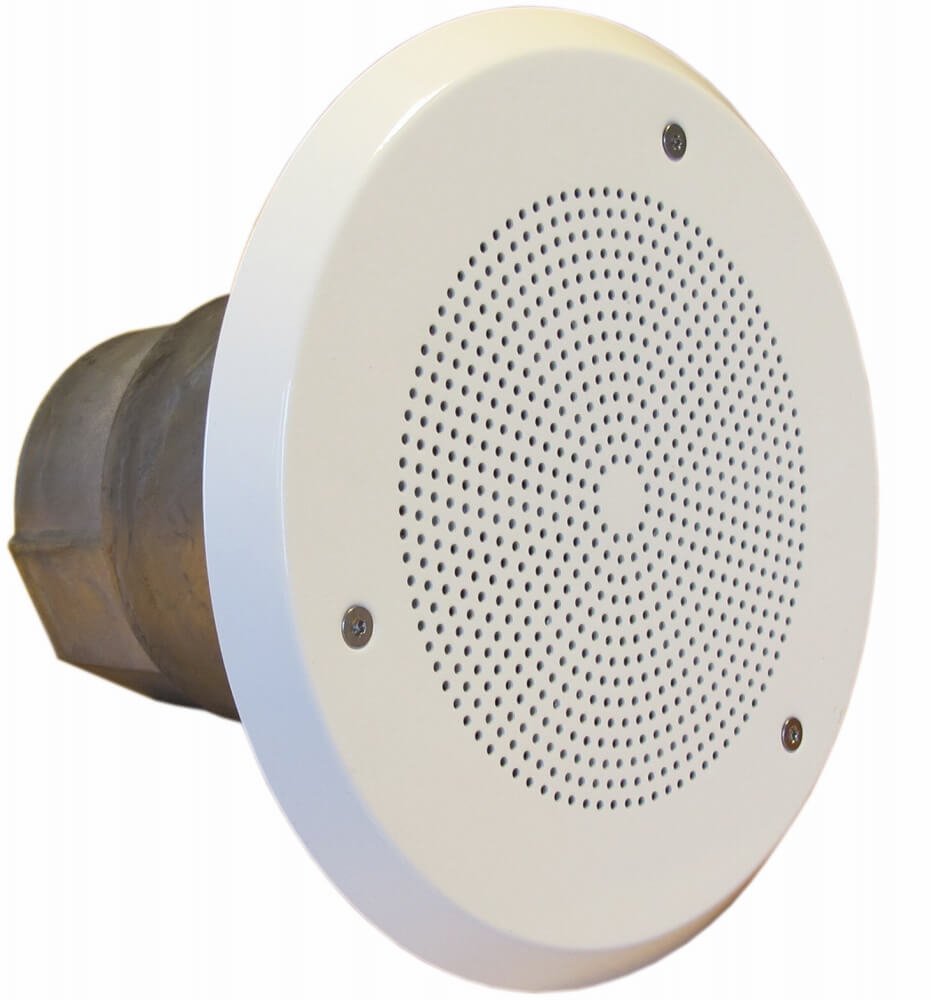

BA-56EExeN(T)x2
This Ex ceiling speaker has extensive certification qualifying it for use in nearly all corners of the world. This variation of the product separately contains two loudspeaker elements, two transformers and two terminals in one Ex housing (A + B system).
BA-56EExeN(T)x2 Specifications
| Material/Color | Aluminium / RAL9010 |
| Mounting | 3 screws |
| Termination | E-chamber / Screw terminal |
| Weight | 3.1 kg |
| IP Rating | IP54 |
| Min/Max amb temp | -20 °C / 50 °C |
| Rated power | 3 W |
| SPL 1W/1m: | 83 db |
| SPL Rated Power | 87 db |
| Effective freq. Range | 190 - 15000 Hz |
| Dispersion (-6dB) 1kHz / 4kHz | 113˚ / 40˚ |
| Options | Certification / Color / Impedance / Power |
