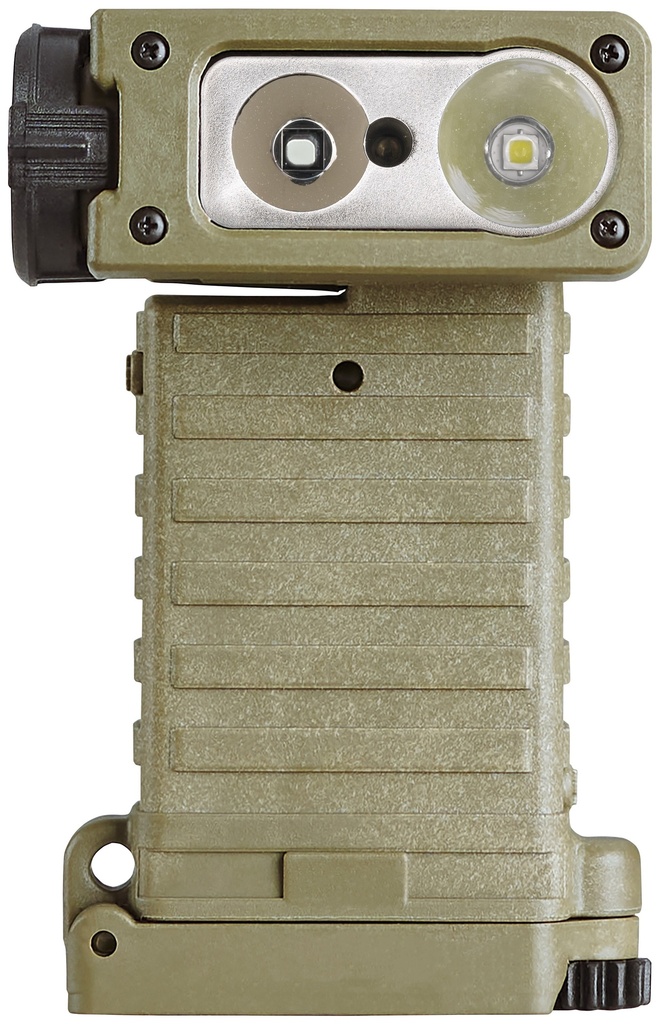

High-Output, Multi-Fuel Military Light with Tilting Head

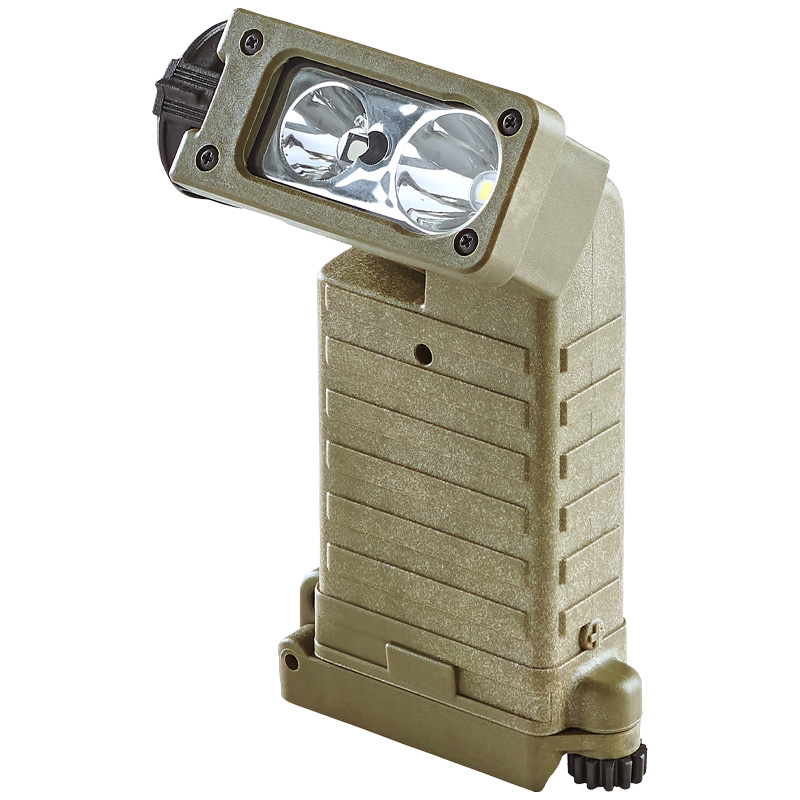

The Sidewinder® X high-output, right-angle, multi-fuel light is designed to meet the demanding needs of military personnel while providing unmatched versatility. It features a 185° tilting head and gear clip to allow for ideal positioning of the light, along with various colored LEDs operable at varying outputs and run times.

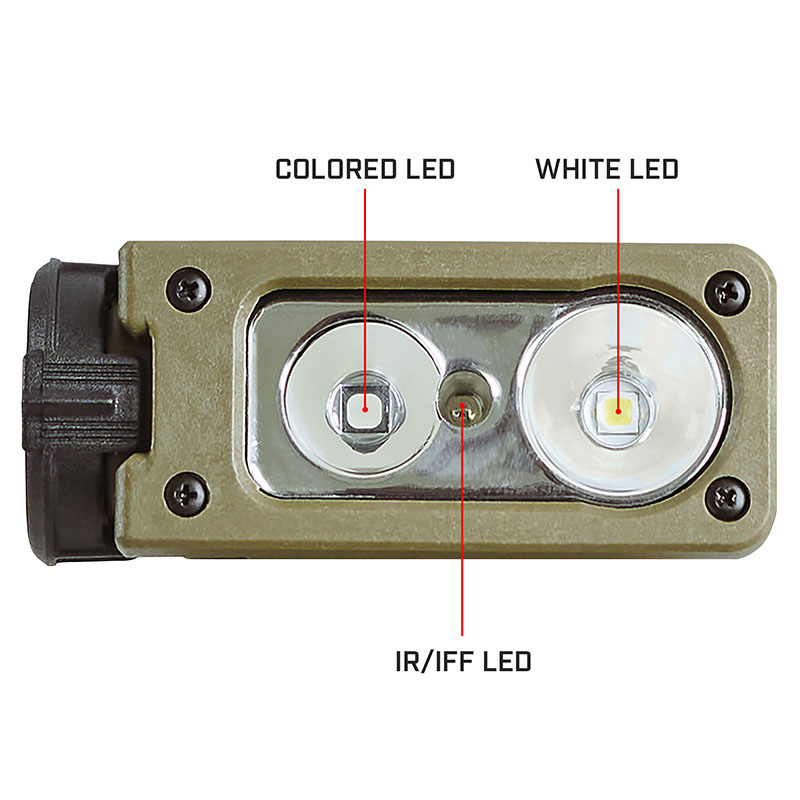

- Features white, IR, and colored LEDs, each with high, medium 2, medium 1, low, and strobe modes
- White LED Output at 100%:
- High – 275 lumens; 113m beam; 3,200 candela; runs 4.75 hours (AA), runs 2.75 hours (CR123A)
- View Fact Sheet for complete output information

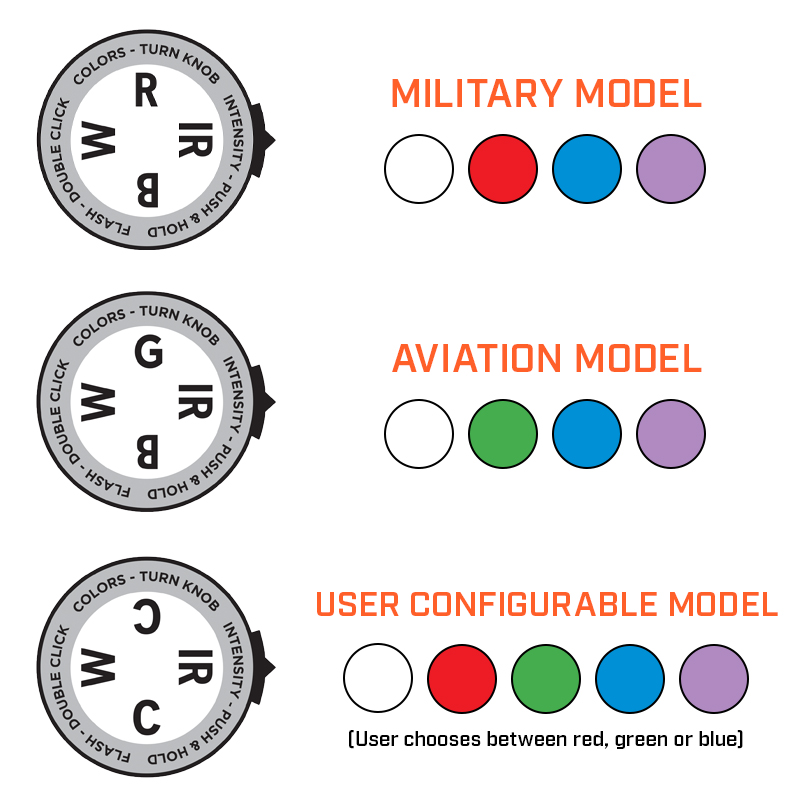

- Available in the Following Configurations:
- Military Model – White / Red / Blue / IR LEDs
- Aviation Model – White / Green / Blue / IR LEDs
- User Configurable Model – White / 2 LED Color Options (Red, Green, or Blue) / IR LEDs
- Powered by (2) AA alkaline batteries (included) or (1) CR123A lithium battery
- Push-button switch enables/disables selected illumination source starting at low output and progressing to the highest output in 4 discrete steps
- Double-click to initiate high-output strobe of selected illumination source
- Pull-to-turn locking rotary selector knob prevents accidental mode changes and allows for selection of (4) illumination sources
- Tactile indicator on rotary knob for IR LED position
- High-impact, super-tough nylon construction offers exceptional durability and weather resistance
- Unbreakable polycarbonate lens with scratch-resistant coating; gasket-sealed
- IPX7-rated; waterproof to 1 meter for 30 minutes
- 3-meter multiple orientation impact resistance tested
- Cord attachment hole on body capable of supporting 50 lbs. (22.7 kg) of load

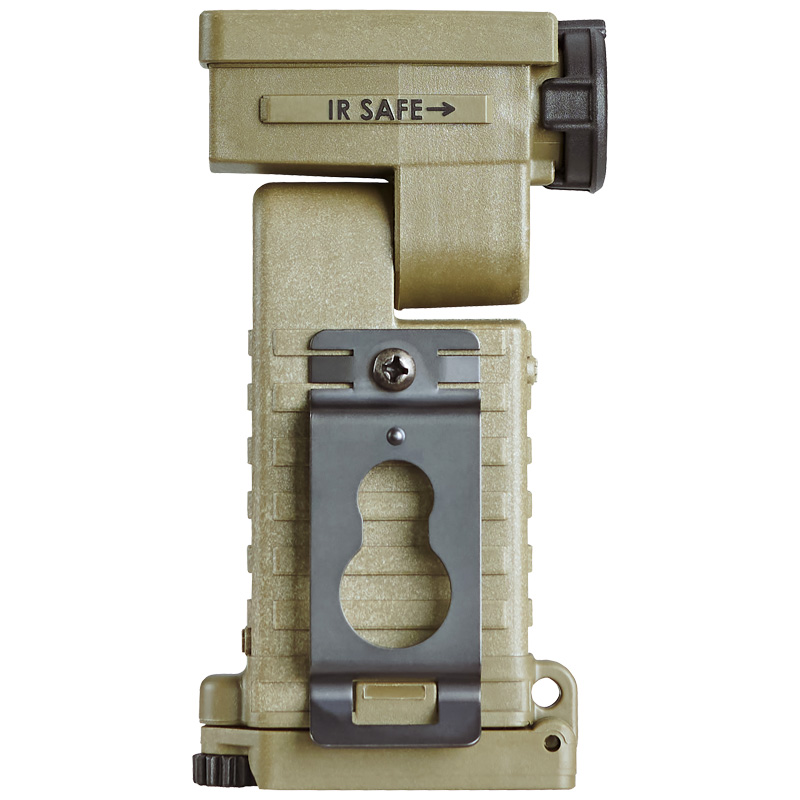

- Durable gear clip with integral hands-free/helmet mount features
- Height: 4.6 in (11.7 cm); Weight: 4.4 oz (124.7g) w/ AA alkaline; 3.3 oz (93.6g) w/ CR123A
- 1-year limited warranty
- Assembled in the USA
Product Specifications
| Lumens (High) | 275 |
|---|---|
| Lumens (Medium) | 80 |
| Lumens (Low) | 5 |
| Beam Distance (High) | 113 meters |
| Beam Distance (Medium) | 60 meters |
| Beam Distance (Low) | 14 meters |
| Candela (High) | 3,200 |
| Candela (Medium) | 900 |
| Candela (Low) | 50 |
| IR (High) | 50 mW |
| Battery Type | AA Alkaline, CR123A Lithium |
| Battery Quantity (Min) | 1 |
| Battery Quantity (Max) | 2 |
| Length (Max) | 2.40 inches (6.10 centimeters) |
| Weight (Max) | 4.40 ounces (124.74 grams) |
| Weight (Min) | 3.30 ounces (93.55 grams) |
| Colors | Coyote |
| Run Time (High) [AA Alkaline] | 4.75 hours |
| Run Time (Medium) [AA Alkaline] | 13.00 hours |
| Run Time (Low) [AA Alkaline] | 150.00 hours |
| Strobe Run Time [AA Alkaline] | 10.50 hours |
| Run Time (High) [CR123A] | 2.75 hours |
| Run Time (Medium) [CR123A] | 8.00 hours |
| Run Time (Low) [CR123A] | 100.00 hours |
| Strobe Run Time [CR123A] | 5.75 hours |
| Run Time (High) [Red - Alkaline] | 50.00 hours |
| Run Time (Medium) [Red - Alkaline] | 100.00 hours |
| Run Time (Low) [Red - Alkaline] | 300.00 hours |
| Strobe Run Time [Red - Alkaline] | 100.00 hours |
| Beam Distance (High) [Red - Alkaline] | 13 meters |
| Candela (High) [Red - Alkaline] | 40 |
| Lumens (High) [Blue - Alkaline] | 2 |
| Run Time (High) [Blue - Alkaline] | 50.00 hours |
| Run Time (Medium) [Blue - Alkaline] | 100.00 hours |
| Run Time (Low) [Blue - Alkaline] | 300.00 hours |
| Strobe Run Time [Blue - Alkaline] | 100.00 hours |
| Beam Distance (High) [Blue - Alkaline] | 7 meters |
| Candela (High) [Blue - Alkaline] | 12 |
| Lumens (High) [Green - Alkaline] | 8 |
| Run Time (High) [Green - Alkaline] | 50.00 hours |
| Run Time (Medium) [Green - Alkaline] | 100.00 hours |
| Run Time (Low) [Green - Alkaline] | 300.00 hours |
| Strobe Run Time [Green - Alkaline] | 100.00 hours |
| Beam Distance (High) [Green - Alkaline] | 18 meters |
| Candela (High) [Green - Alkaline] | 83 |
| Run Time (High) [Red - CR123A] | 30.00 hours |
| Run Time (Medium) [Red - CR123A] | 70.00 hours |
| Run Time (Low) [Red - CR123A] | 200.00 hours |
| Strobe Run Time [Red - CR123A] | 50.00 hours |
| Run Time (High) [Blue - CR123A] | 30.00 hours |
| Run Time (Medium) [Blue - CR123A] | 70.00 hours |
| Run Time (Low) [Blue - CR123A] | 200.00 hours |
| Strobe Run Time [Blue - CR123A] | 50.00 hours |
| Run Time (High) [Green - CR123A] | 30.00 hours |
| Run Time (Medium) [Green - CR123A] | 70.00 hours |
| Run Time (Low) [Green - CR123A] | 200.00 hours |
| Strobe Run Time [Green - CR123A] | 50.00 hours |
