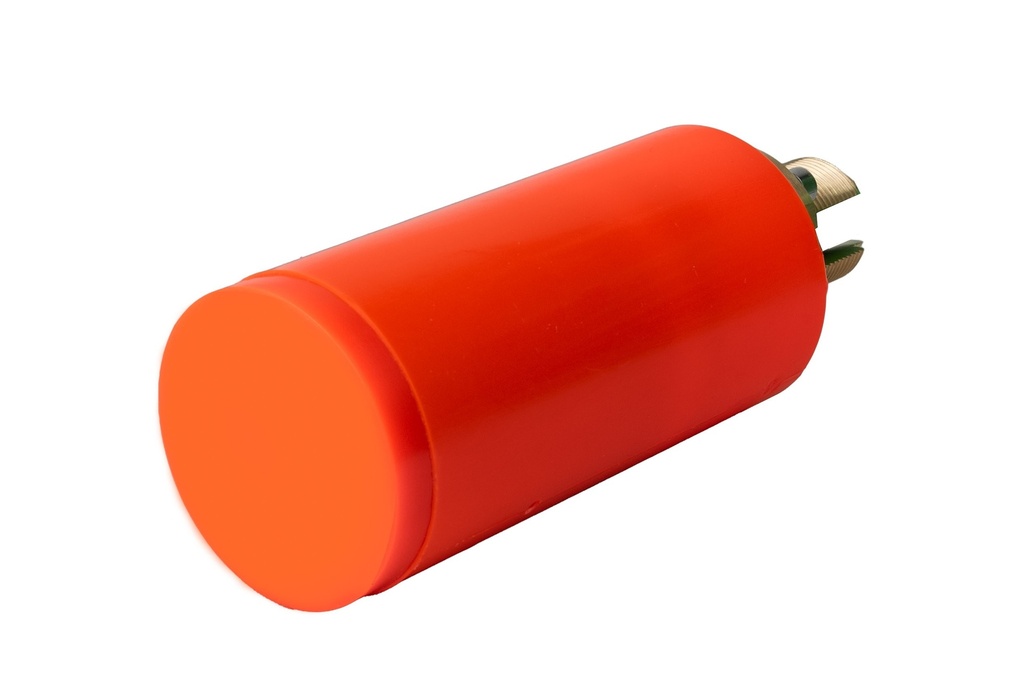

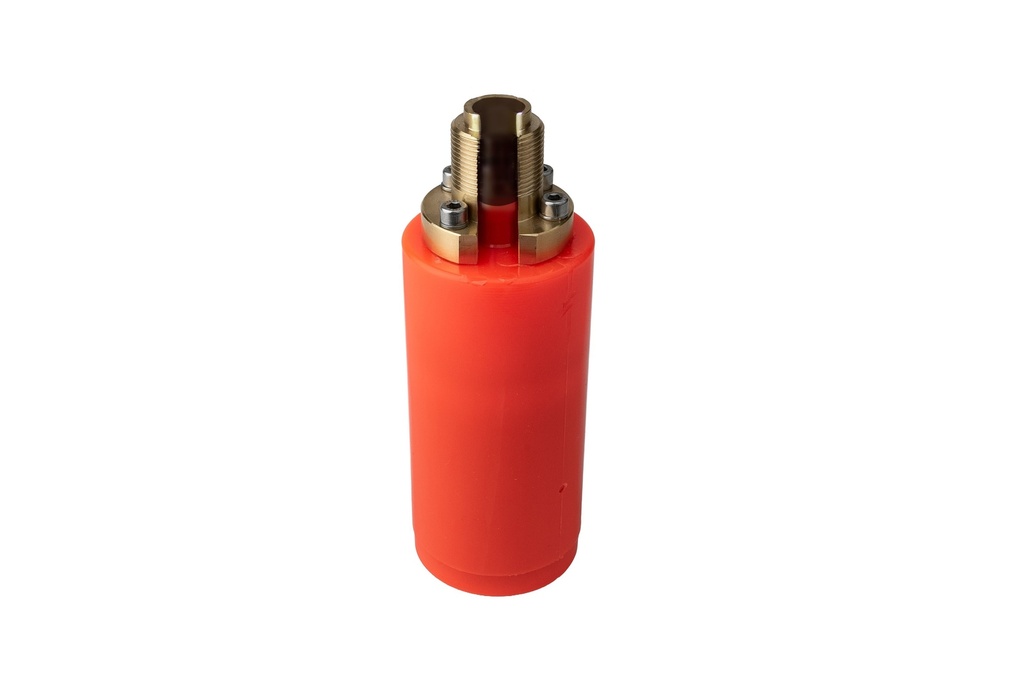

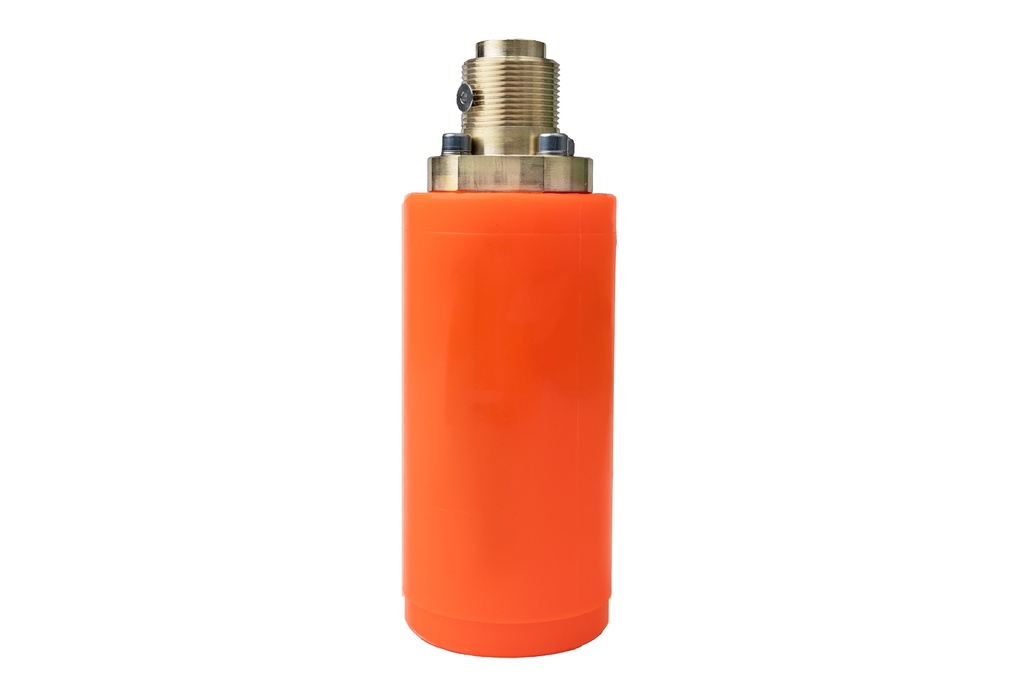

The SKIPPER DL1 sensor is a single axis Doppler sensor designed for the SKIPPER DL1 speed log system. It provides accurate speed through water (STW) measurements, supporting reliable navigation and vessel performance monitoring.
Description
Features
- Only to be used with SKIPPER DL1 and DL1 Multi systems
- Single axis speed through water (STW)
- 60 mm in diameter
- Cable length 40 m
| Product: | Sensor for SKIPPER DL1 speed log system |
| Part number: | Multiple options |
| To be used with: | SKIPPER DL1 |
| Range: | STW only |
| Material: | Polyurithane |
| Weight: | 7 kgs |
| Cable length: | 40 m |
| Diameter: | 100 mm |
| Classification: |
|
Available in these variants:
| DL1SG-SA | for mounting in:
|
| DL1ST-SA | for mounting in ETNSTCL Steel tank |
| DL1STA-SA | for mounting in ETNALC Aluminium tank |
| DL1SDB-SA | for mounting in:
|
| DL1SN-SA | Retrofit to Simrad NL-log |
| DL1SS-SA | Retrofit to Sagem |
| DL1SV-SA | Retrofit to Naviknot 5005 |
| DL1SX-SD | Retrofit to PCSV60 |
