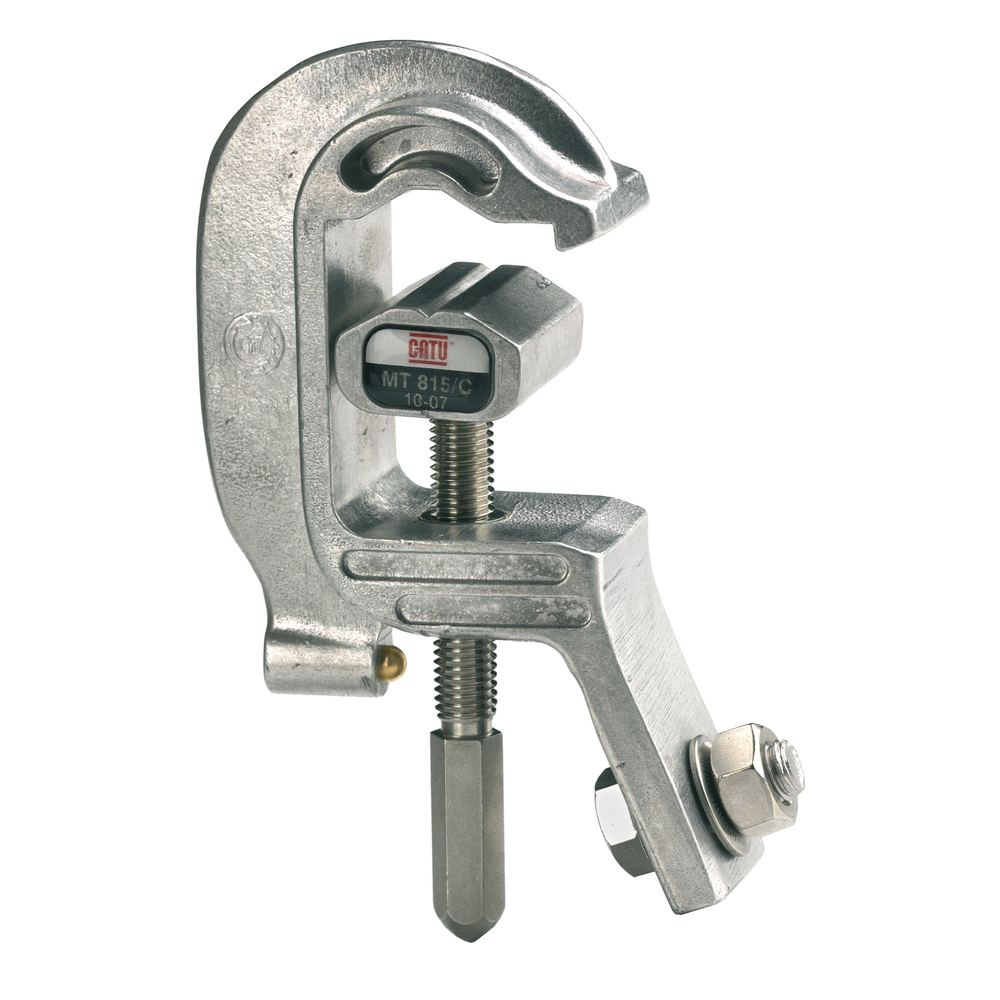

Earthing and short-circuiting clamp for use with insulating stick.

CHARACTERISTICS

• Clamp in accordance with IEC 61230 standard.

• Short-circuit withstand : 30 kA/1s.

• Body made of aluminium alloy. Screws made of stainless steel.

• Connexion area for cable section 150 mm² max.

• Screw and bolt M12 for cable lug fixation.

• Clamping capacity : - Ø 5 to 35 mm. - Flats, thickness 5 to 16 and width 40 mm.

• Dimensions: 180 x 120 x 45 mm.

• Weight : 0,6 kg.

• End fitting type « C » : hexagonal, male of 12 mm on flats.
