Application :

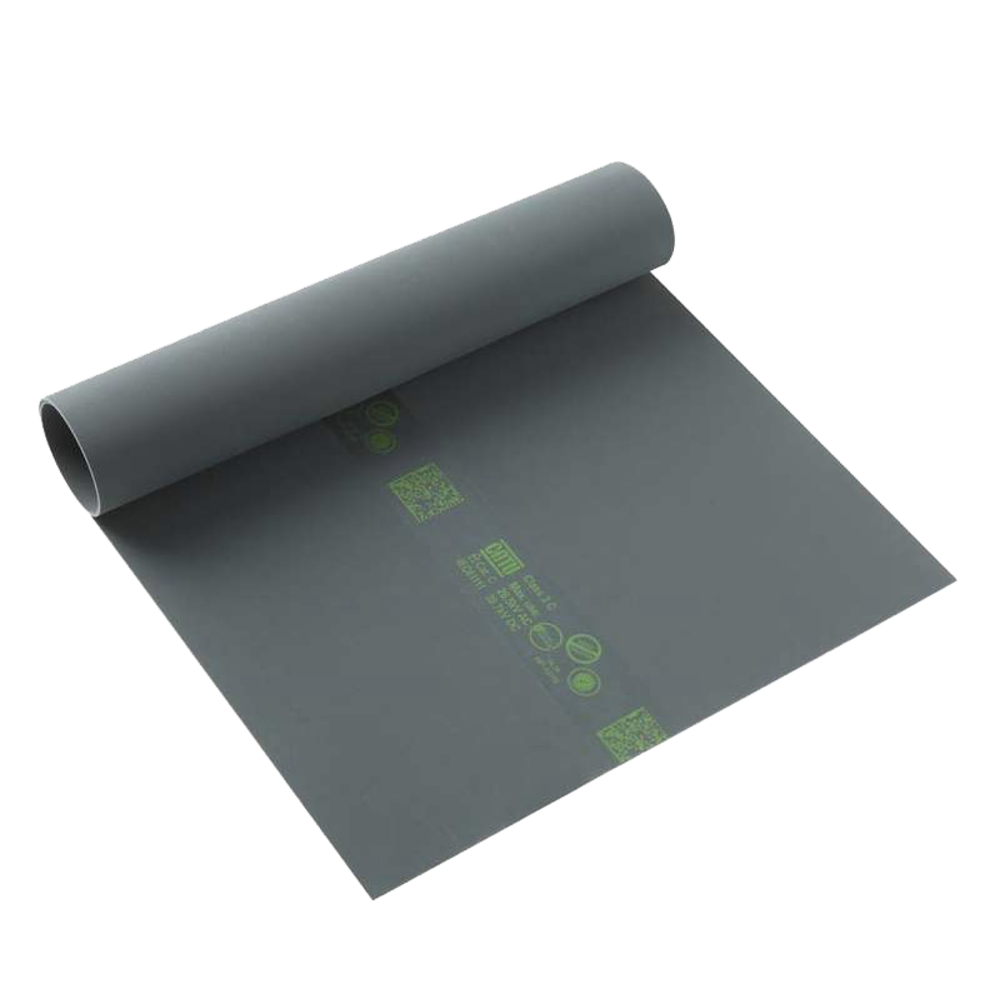

CATU Electrical Insulating Mats conform to IEC 61111:2009 and are manufactured using high quality elastomer rubber in order to provide complete protection against electric shock, isolating users from potentially life-threatening electrical currents..

CATU Electrical Insulating Mats are suitable for use in outdoor and indoor applications and are generally placed in front of electrical panels, switch gears & high voltage equipment in order to create a safe working environment for the operators/users.

The choice of the class must be determined according to the maximal nominal voltage of the network.

Rigorous testing to conform to the IEC 61111:2009 standard includes:

Features :

• Insulating mat for live and dead working.
• Class 3 - Maximum operating voltage: 26 500 V AC - 39 750 V DC.
• Used to cover the floor for the electrical protection of operators in electrical installations.
• Protect the workers from the ground potential.
• Must be adapted to the nominal voltage of the network supplying the installation on which it is used.
• In accordance with IEC 61111:2009 standard and to specific properties of the “C” Category (extremely low temperature folding test at – 40 °C).
• RoHS2 compliant. REACH compliant (SVHC free).
• Material: elastomer, halogen free.
• Thickness: 3.2mm +/-0.2mm.
• D bar code (Datamatrix) on marking with direct link to user guide and technical sheet.
• Storage temperature: +10°C to +21°C.
• Operating temperature: -40°C to +55°C.
