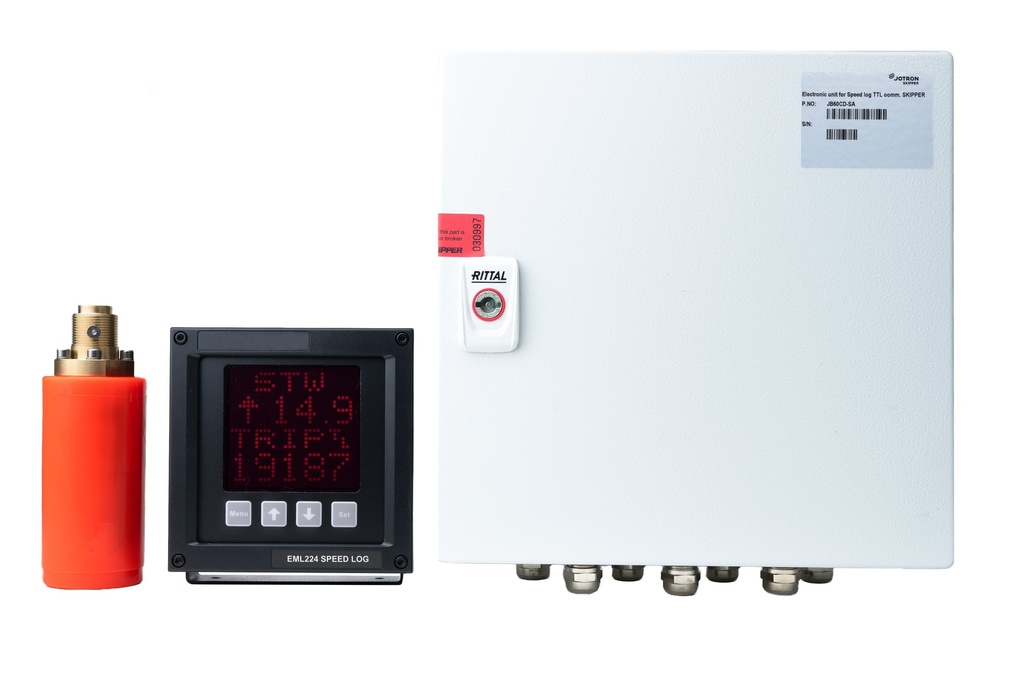

The SKIPPER EML224 Compact is a single or dual axis speed log, working on the electromagnetic principle, providing longitudinal and transversal ship’s speed relative to sea water. The EML224 Compact gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.
Description
Features
- IMO Wheelmarked with MED-B
- Water speed log in single or dual axis (STW)

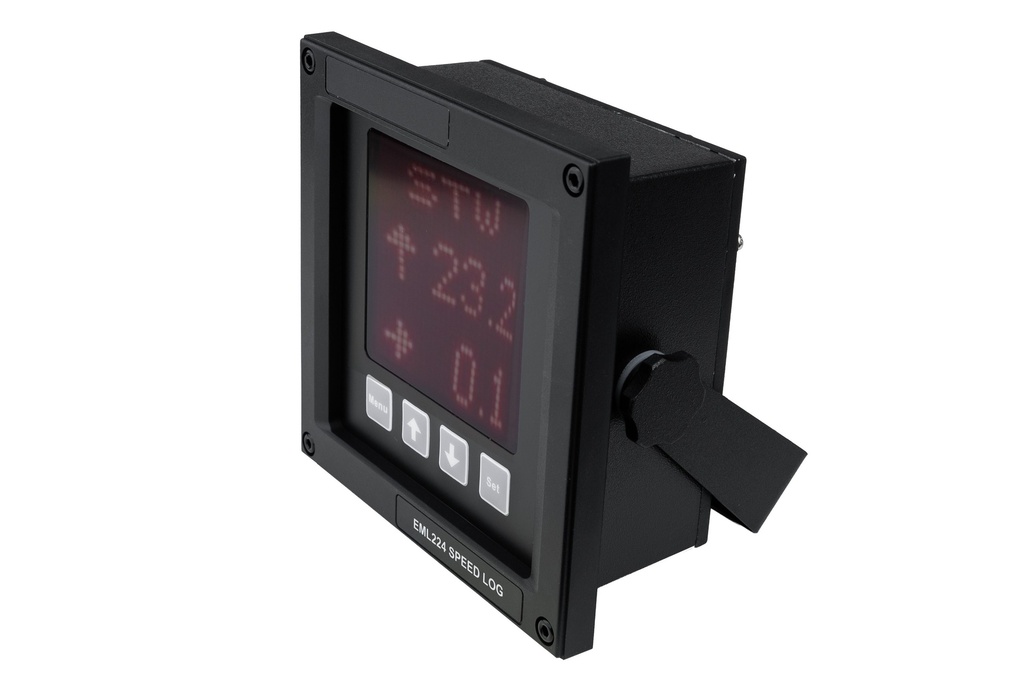

- Compact display 144x144 mm
- Sea temperature readout from sensor
- NMEA 0183 and analog pulses output
- 1 Programmable contact closure
- CCS available on request
Speed log: | EML124 Compact | EML224 Compact |
|---|---|---|
Number of axis: | 1 | 2 |
Speed range longitudinal: | +/- 40 knots | +/- 40 knots |
Speed range transversal: | N/A | +/- 40 knots |
Water track (from): | 0 meter | |
Temperature accuracy error: | <1°C | <1°C |
Power supply: | AC:115-230 V 50/60 Hz DC: 20-32 V, auto switch over | AC:115-230 V 50/60 Hz DC: 20-32 V, auto switch over |
Power consumption: | Max 30 W | Max 30 W |
Display: | 28x30 pixel alphanumeric LEDs (red) with dimming | 28x30 pixel alphanumeric LEDs (red) with dimming |
Mounting dimensions display: | 124x124 mm. Bracket or panel mounting | 124x124 mm. bracket or panel mounting |
Front plate: | 144x144 mm | 144x144 mm |
Depth: | 59 mm | 59 mm |
Weight: | 1 kgs | 1 kgs |
Standard cable length: | 10 m (max 20 m) | 10 m (max 20 m) |
Mounting options: |
| |
Speed alarms: |
| |
Outputs: |
| |
Inputs: |
| |
NMEA outputs: |
| |
Classification: |
| |
Service: | Available in most major harbours, world-wide through extensive dealer network | Available in most major harbours, world-wide through extensive dealer network |
