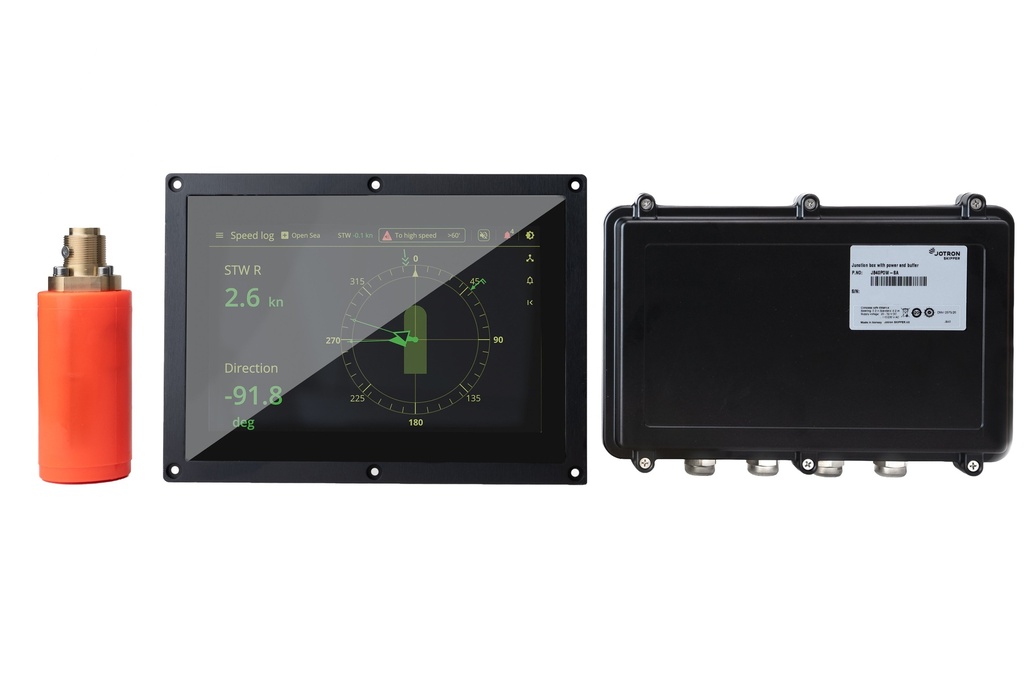

The SKIPPER EML1100 is a single axis speed log providing the ship's speed in the longitudinal axis working on the electromagnetic principle. Provides speed through water (STW).
EML1100 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.
Description
Features
- IMO Wheelmarked with MED-B
- EML1100 - Water speed log in single axis (STW)
- EML1200 - Water speed log in dual axis (STW)

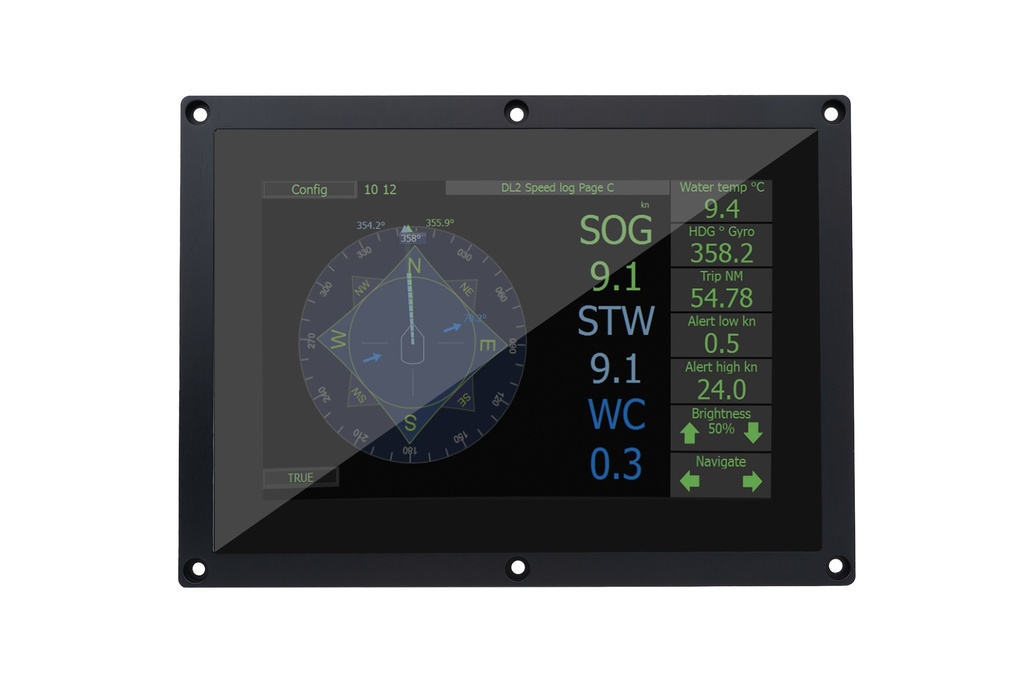

- 10" Touch display
- Sea temperature readout from sensor
- LAN outputs and NMEA0183
- CCS available on request
| Speed log | EML1100 | EML1200 |
|---|---|---|
| Number of axis: | 1 | 2 |
| Speed range longitudinal: | +/- 40 knots | +/- 40 knots |
| Speed range transversal: | N/A | +/- 40 knots |
| Water track (from): | 0 meter | |
| Temperature accuracy error: | <1°C | <1°C
|

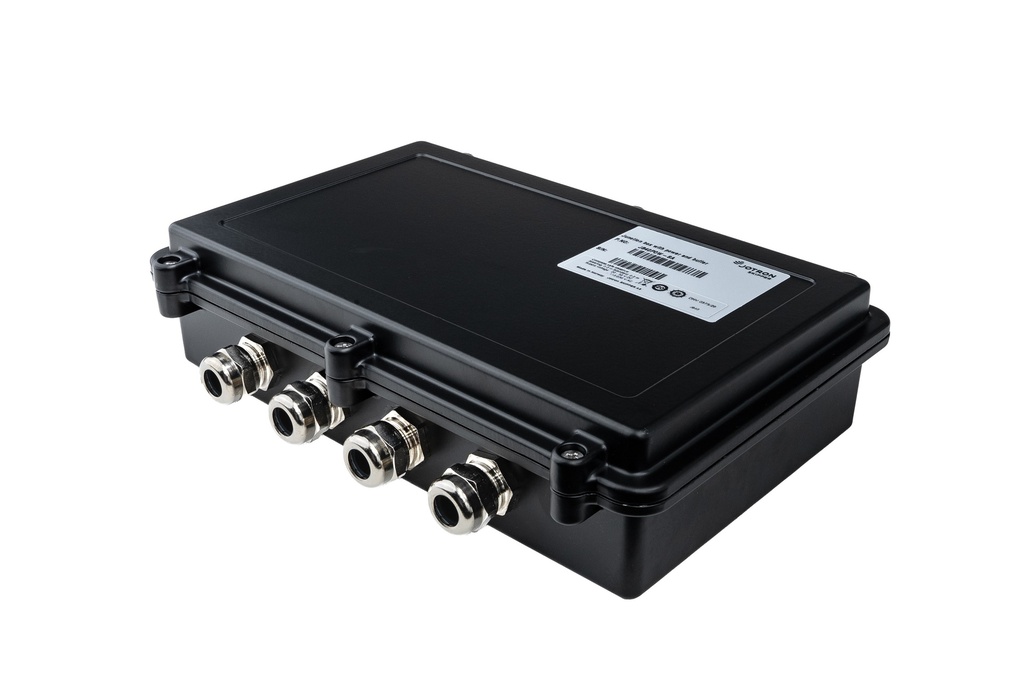

| Power supply: | 2xDC: 24 V, auto switch over Power supply JB40 24VDC or 110-240VAC | 2xDC: 24 V, auto switch over Power supply JB40 24VDC or 110-240VAC |
| Power consumption: | Max 30 W | Max 30 W |
| Display: | 10" Graphical Touch display | 10" Graphical touch display |
| Language: | English |
|
| Front plate: | 287mm x 209,5 mm | 287mm x 209,5 mm |
| Depth: | 65 mm | 65 mm |
| Weight: | 2 kgs | 2 kgs |
| Mounting options: |
|
|
| Speed alarms: |
|
|
| Outputs: |
|
|
| Inputs: |
| |
| NMEA outputs: |
| |
| Classification: |
| |
| Service: | Available in most major harbours, world-wide through extensive dealer network | Available in most major harbours, world-wide through extensive dealer network |
