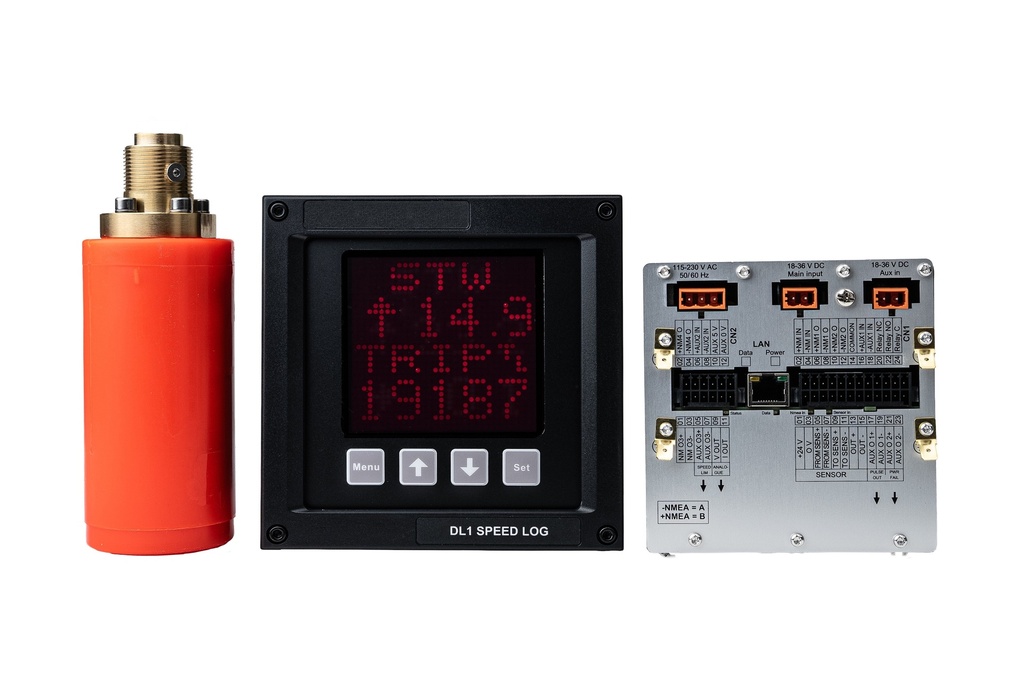

The SKIPPER DL1 Multi is a single axis speed log, working on the Doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 Multi gives accurate navigation parameters measured as they happen and presented in a logical, user friendly way.
Description
Features
- IMO Wheelmarked with MED-B
- Water doppler speed log in single axis (STW)

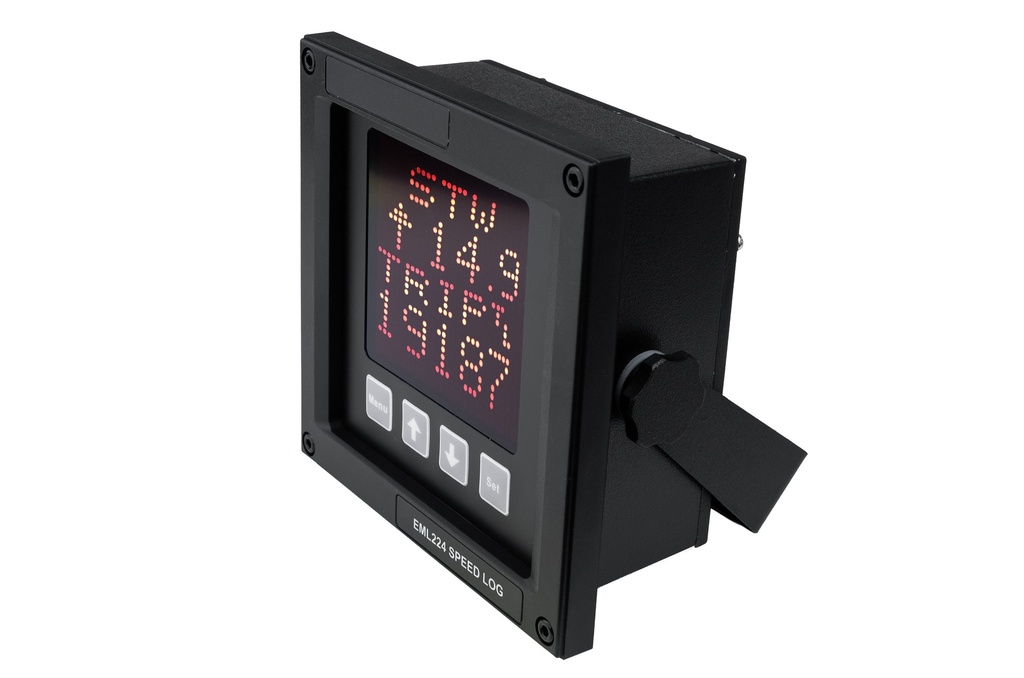

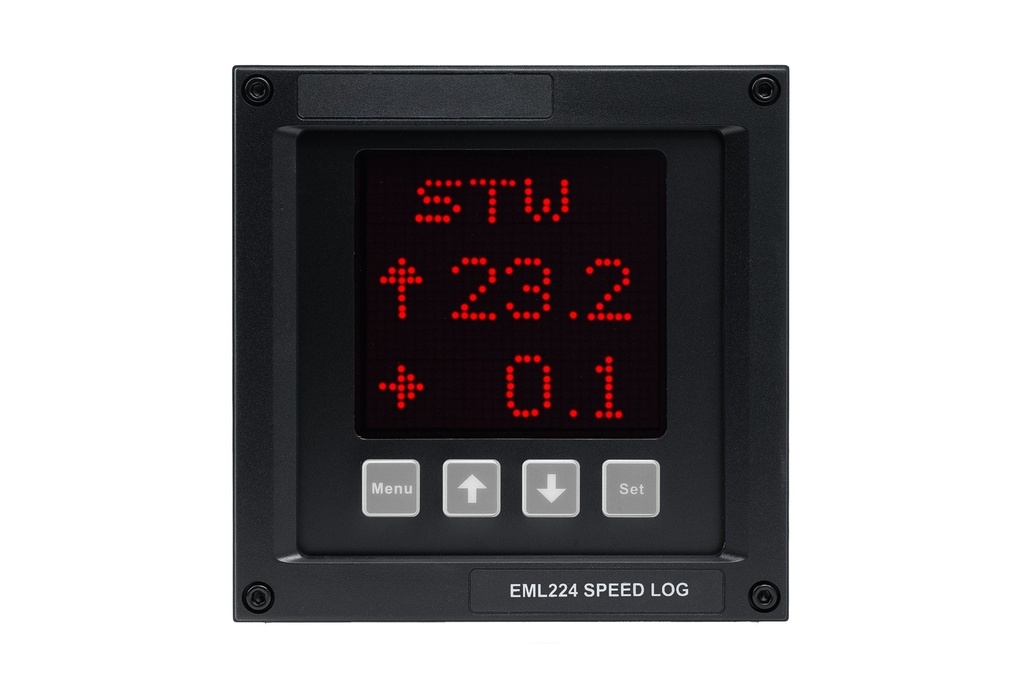

- Compact display 144x144 mm
- Sea temperature readout from sensor
- LAN and NMEA 0183 and analog pulses output
- Fully automatic settings
- CCS available on request
| Speed log | DL1 Multi |
| Number of axis | 1 |
| Speed range longitudinal | +/- 50 knots |
| Speed range transversal | N/A |
| Water track (from) | 2 meter |
| Temperature accuracy error | <1°C |
| Primary frequency | 715 kHz |

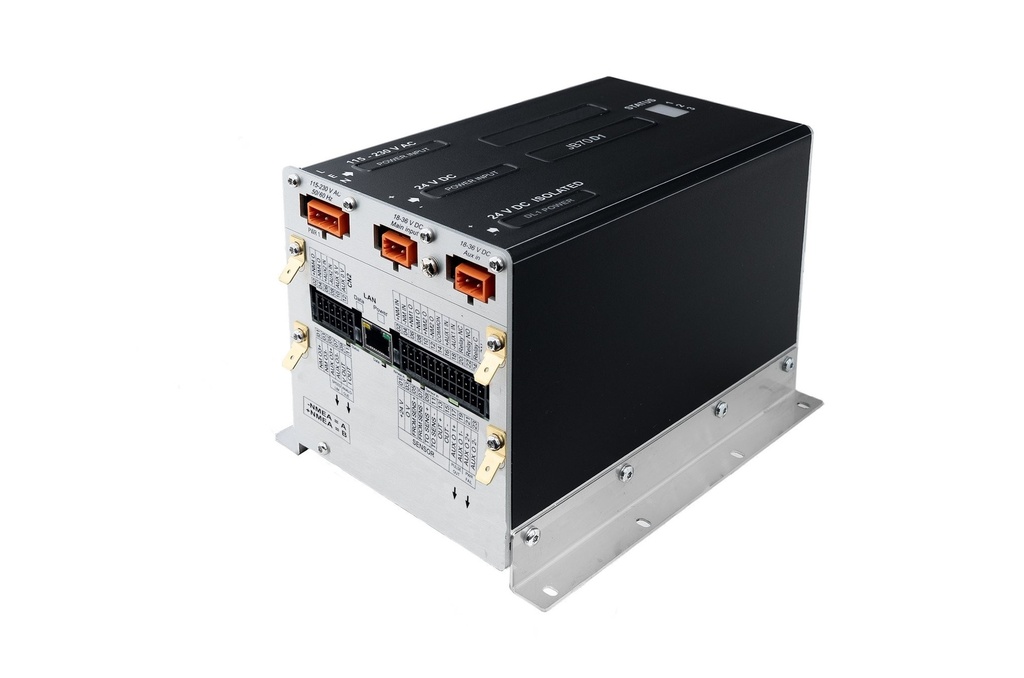

| Power supply | • For Electronic unit (JB70D1-XX): AC: 115-230 V 50/60 Hz • For Electronic unit (JB70D1-XX): DC: 24 V • For Display (CD402CU-XX): DC: 24 V |
| Power consumption | Max 30 W for complete speed log |
| Display | 28x30 pixle alphanumeric LEDs (red) with dimming |
| Mounting dimensions display | 124x124 mm. bracket or panel mounting |
| Front plate | 144x144 mm |
| Depth | 59 mm |
| Weight | • 1 kgs for display • 2,5 kgs for electronic unit • 10 kgs for sensor with 40 m cable |
| Standard cable length | None for display - pluggable (IP23), (max. 100 m) |

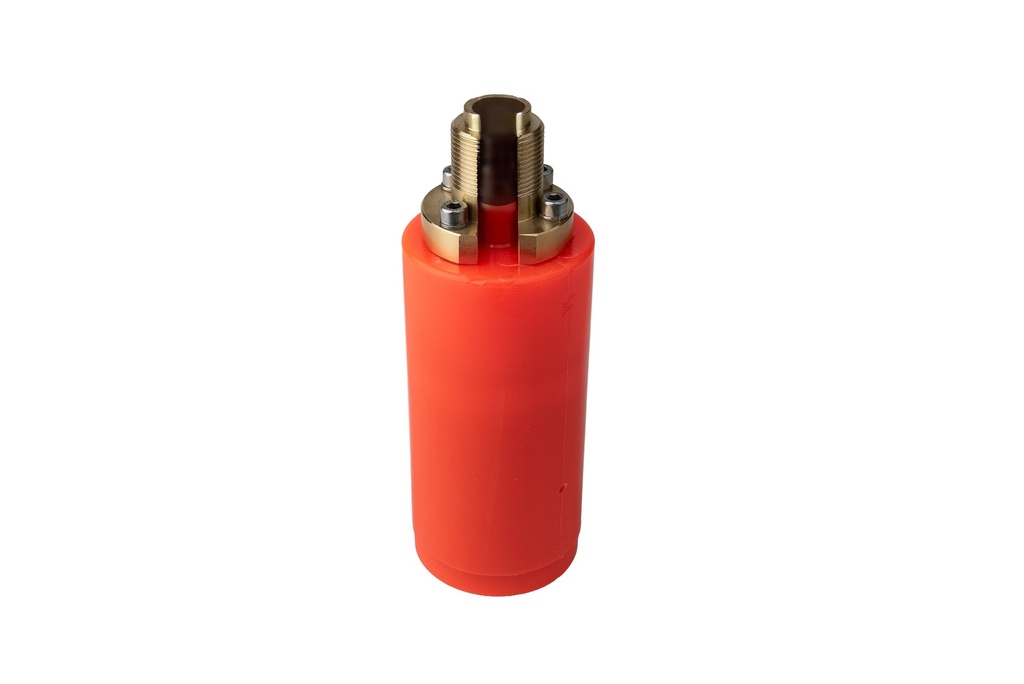

| Standard cable length for sensor | 40 m |
| Mounting options | • 60 mm sea valve for single bottom • 60 mm sea valve for double bottom • Steel Tank • Aluminium tank • 100 mm sea valve for single bottom • 100 mm sea valve for double bottom • Retrofit for Simrad NL-Log • Retrofit for Sagem/Safran • Retrofit for Sperry Naviknot SRD331 • Retrofit for PCSV60 |
| Speed alarms | • High and low speed limits • Power failure • Sensor failure |
| Clock | Year-month-day/Hour-min. (taken from GPS if available) |
| Outputs | • 1 x LAN (IEC61162-450) • 4 x NMEA 0183 (IEC61162-1/2) • 3 x Auxiliary opto isolated (pulse, speed etc.) • 1 x Contact closure (alarm etc.) |
| Inputs | • 1 x LAN (IEC61162-450) • 1xNMEA 0183 (IEC61162-1) • 2 x Auxiliary opto isolated (alarm) |
| NMEA outputs | • Speed: VBW and VHW |
| Accepted NMEA formats | VTG, RMC, GGA and ACK |
| Accessories | • ENIR300-SA Speed repeater |
| Classification | • IMO Wheelmarked • CCS on request • MED-B • IEC61023 • IEC60945 • IEC61162-1/2/450 • IEC622 |
| IP rating | Electronic unit: 22 Display: 22 Sensor: IPX7 |
| Service | Available in most major harbours, world-wide through extensive dealer network |
