Amphenol Procom Omni Antennas Antenna For Maritime Application

Amphenol Procom Omni Antennas Antenna For Maritime Application

(0 review)
SKU:
CLX3-1LW

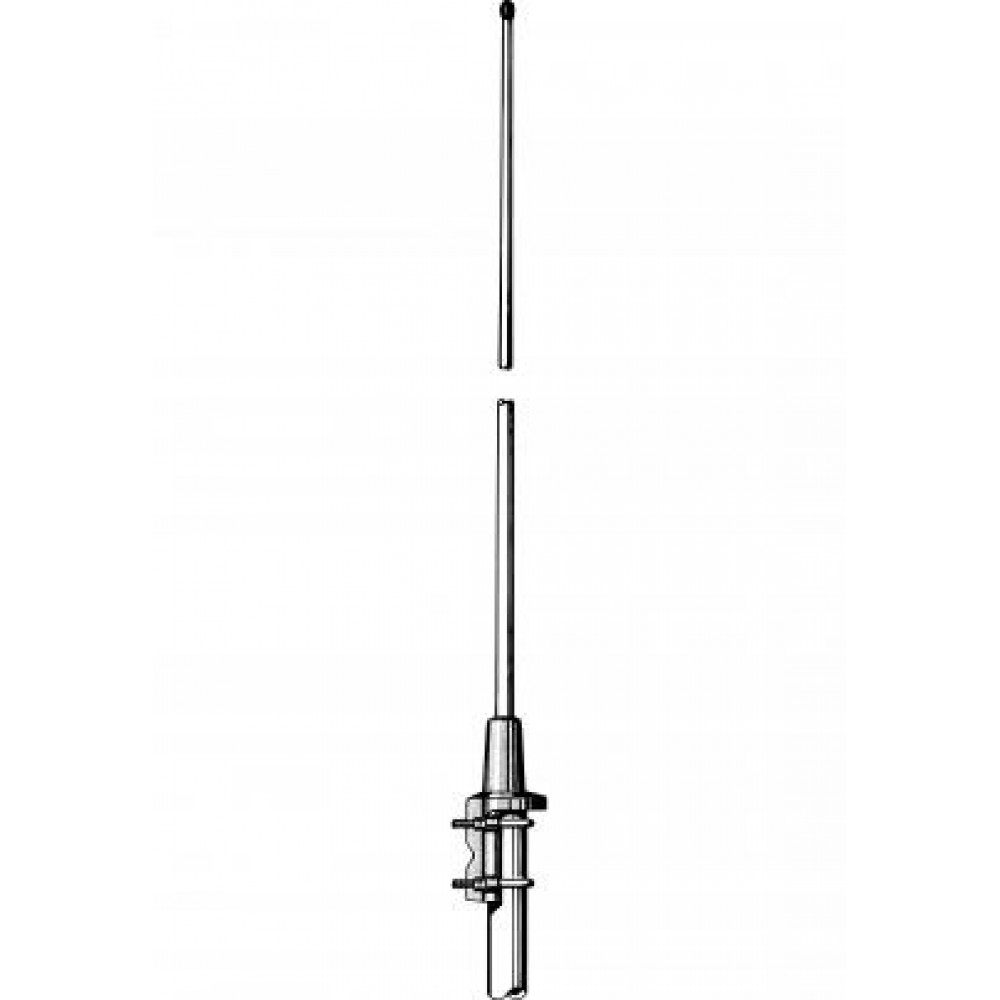

Product Image

Amphenol Procom Omni Antennas Antenna For Maritime Application

Select Options
Brand: Amphenol Procom
Origin of Goods: Denmark
  • Best Quality Products
Guaranteed safe checkout
Contact Us

Omni Antennas CXL 3-1LW
Unity-Gain, Omnidirectional Base Station Antenna for the International Aircraft Band

  • CXL 3-1LW is a 0 dBd, vertically polarized, omnidirectional base station antenna for the 118 - 137 MHz civil aircraft band.
  • The antenna is a broad-banded ½ λ dipole design, and it is equipped with our type “LW” mast mount, which is a lightweight, multi-purpose, epoxy-coated aluminium mounting bracket with stainless steel fittings.
  • The antenna can be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter. Further, the construction of the mount makes it possible to lead the cable either along the inside or on the outside of the mast tube.
  • A conical glass fibre tube with very low wind-loading completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • CXL 3-1LW is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station antenna.

Specifications

Electrical
Model CXL 3-1LW
Frequency Covering : 118 - 137 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 150 W
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 66 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.75:1
Bandwidth 19 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 030DE00
Mechanical
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Wind Area 0.0162 sq. m / 0.17 sq. ft.
Wind Load 25 N (160 km/h)
Height Approx. 1500 mm / 59.06 in.
Weight Approx. 0.80 kg / 1.76 lb.
Mounting On 27 - 65 mm / 1.02 - 2.56 in. dia. mast tube
Environmental
Operating temperature range -40 °C to +70 °C
Survival Wind Speed Tested to 200 km/h / 124.27 mph.
Ingress Protection IP66
