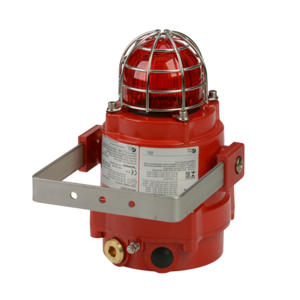

The BExBG05 5 Joule beacons robust construction enables installation in the harshest of environments. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Features

• Marine grade, corrosion proof, LM6 aluminium enclosure
• Automatic synchronisation on multi-beacon system.
• Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
• Xenon tubes mechanically secured against shock & vibration
• Glass lens & Stainless Steel guard
• Very large termination area.
• Dual M20 cable entries – adaptors available.
• Stopping plug included.
• Ratchet adjustable stainless steel ‘U’ bracket.
• Reverse polarity diode fitted.
• IP66/67 ingress protection.
• 120 candela effective light intensity.
• UV stable PC, field replaceable, colour lens filter.

Approvals

• IECEx Certificate: KEM 10.0002X
• ATEX Certificate: KEMA 00ATEX2006X
• TR-CU Ex EAC certificate: RU C-GB.HA65.B.01252_21
• SIL1 and SIL2 compliant to IEC 61508 (2010)
• INMETRO certificate: 10-IEx-0010
• UKCA certificate: UL22UKEX2636X

Assemblies

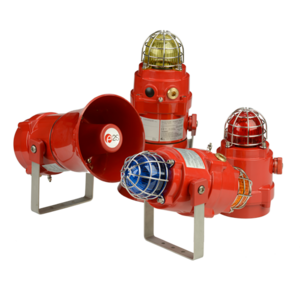

The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes.
See the BExP data sheet for further info or contact E2S sales.

Coding

• II 2G Ex db IIC T5 Gb Ta. -50°C to +40°C
• II 2G Ex db IIC T4 Gb Ta. -50°C to +70°C
• II 2D Ex tb IIIC T90°C Db Ta. -50°C to +40°C
• II 2D Ex tb IIIC T105°C Db Ta. -50°C to +55°C
• II 2D Ex tb IIIC T123°C Db Ta. -50°C to +70°C

Effective Candela lens colour factor
