Weber Single - Stage Rescue Rams
1Closed length (retracted): 750 mm
R137-540-16,2
Final length (extended): 1290 mm
Stroke: 540 mm
Force: 137,4 kN
Pulling force: 24 kN
Weight: 16,2 kg
Oil demand: 0,9 I
Dimensions (LxWxH): 750 X 79 X 190 mm
Nominal pressure: 700 bar
EN classification (EN 13204): R137-540-16,2
Part No:
ENT-HT583
Brands:
Weber
Country of Origin:
Australia

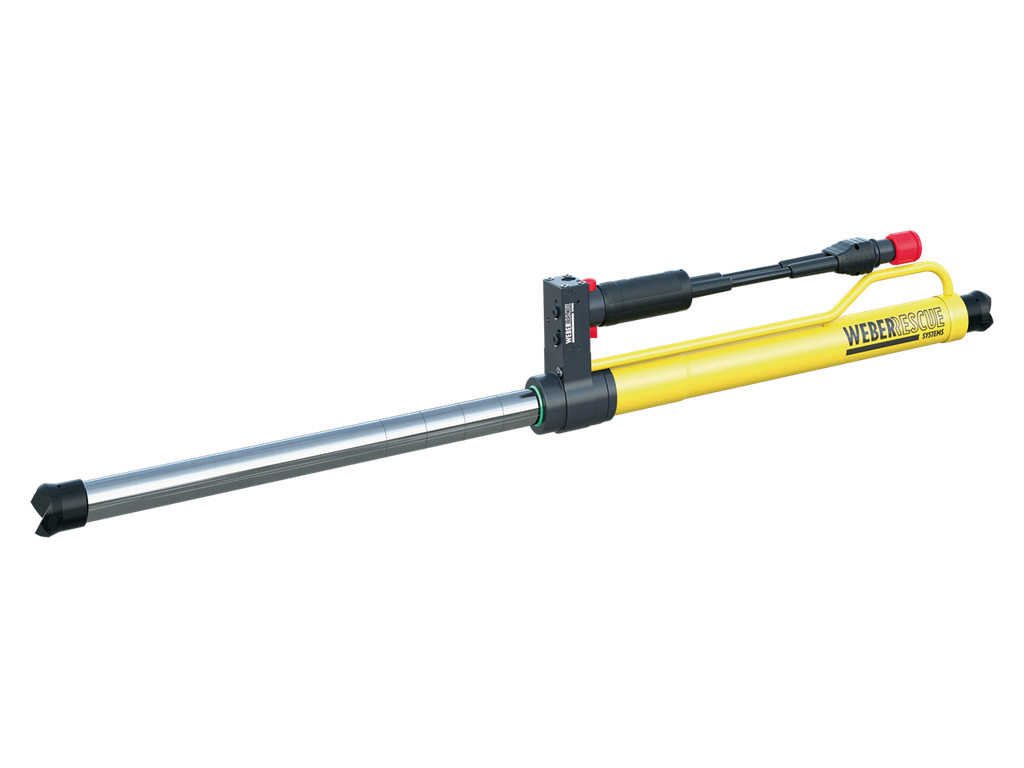

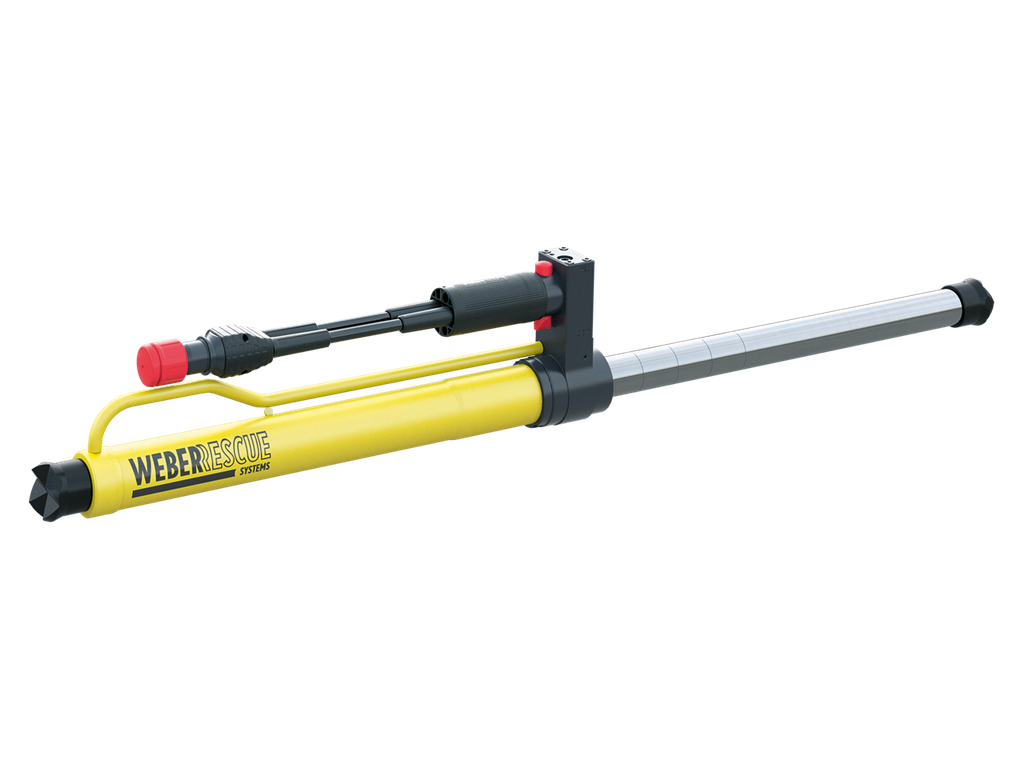

Single-stage rescue ram for pushing and pulling
- Optimum length matching – overlapping length of the entire range of rams
- With movable head, which still can be rotated under load
- Various accessories available, such as adapters and chain sets
- With integrated remaining length indication on the piston rod (DISTANCE) – the remaining length is always easily visible
| Pushing force | 137 kN |
| Pulling force | 24,1 kN |
| Closed length | 750 mm |
| Piston stroke | 540 mm |
| Extended length | 1.290 mm |
| EN class | R137-540-16,2 |
| Weight | 16,2 kg |
| Part no. | 5933781 |
Single-stage rescue ram for pushing and pulling
- Optimum length matching – overlapping length of the entire range of rams
- With movable head, which still can be rotated under load
- Various accessories available, such as adapters and chain sets
- With integrated remaining length indication on the piston rod (DISTANCE) – the remaining length is always easily visible
| Pushing force | 137 kN |
| Pulling force | 24,1 kN |
| Closed length | 750 mm |
| Piston stroke | 540 mm |
| Extended length | 1.290 mm |
| EN class | R137-540-16,2 |
| Weight | 16,2 kg |
| Part no. | 5933781 |
