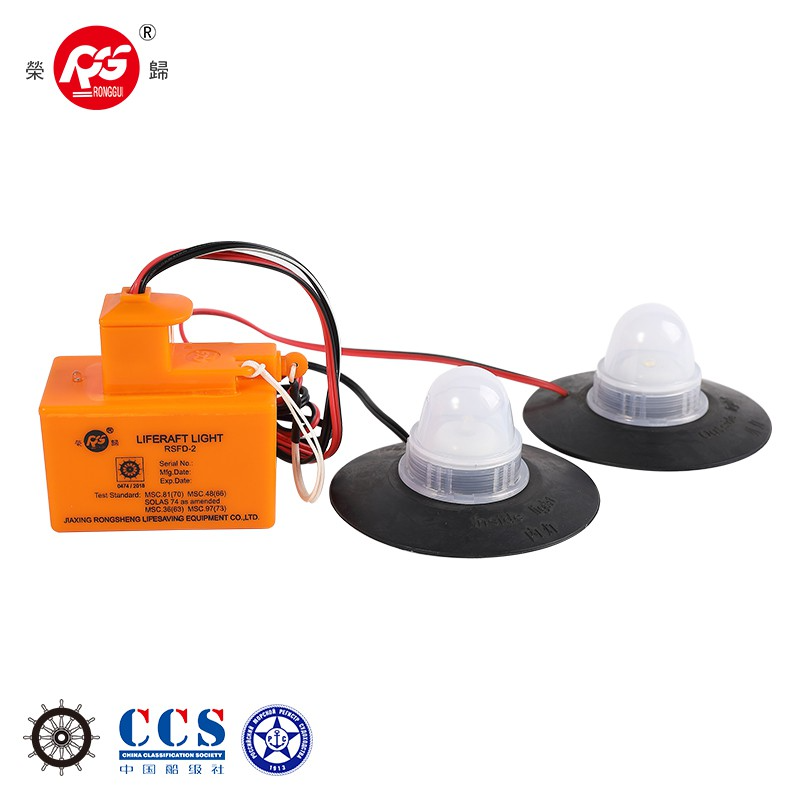

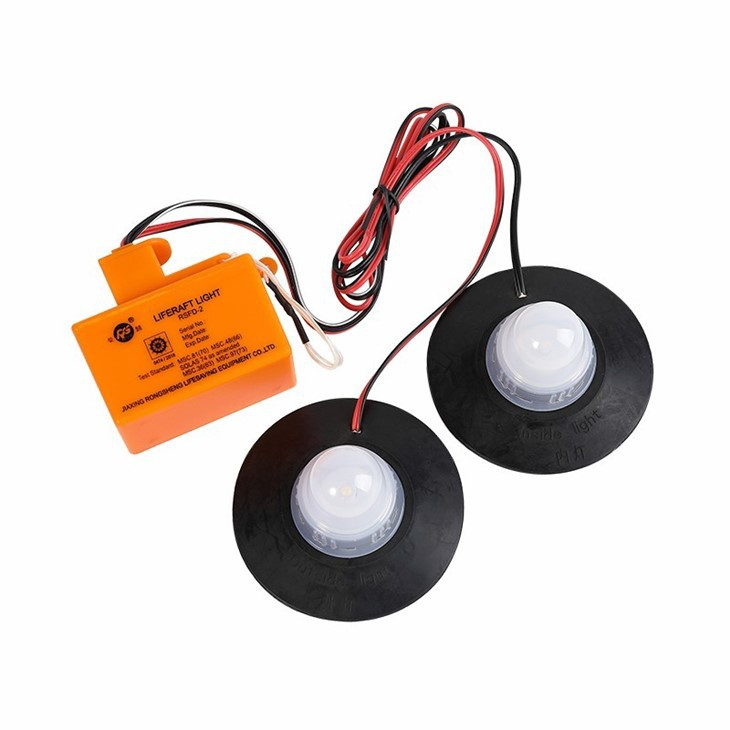

Rongsheng Marine Life Raft Light RSFD-2
1Flash light is adopted for position - indicationg light, and lastinglight for internal light. liferaft light RSFD-2 battery, adopt artificial switch, can off randomly. The single battery of position-indication light and internal light can be exchange. The length of switch pulling line should be adjusted to different type of liferaft. When liferaft inflated, can pull out switch pin, light working.
Major Technical Parameters
Lighting Period | ≥12h | Frequency of Flash | 50-70 Flashes/min |
Luminous Intensity of Exterior Light | ≥4.3 cd | Luminous style of Exterior Light | Flash |
Luminous Intersity of lnterior Light | ≥0.5 cd | Luminous style of lnterior Light | Always |
Battery | Lithum Battery | Term of Validity | 5 Years |
Liferaft Light RSFD-2 Installation
The battery should be placed in the battery bag which is bonding on the top of column.
The position-indication light should be installed on the top of column of liferaft canopy3)
Internal light should be installed on the below of the column or upper of column ofinside liferaft. The pulling line of switch should be tied on column or buoyancy tires and proper positionof rope column of liferaft.
Cautions
To avodi explosion and keep away from fire spots
Compare with liferaft light RSFD-2, liferaft light RSFD-3
Model | Size for battery | Lithium battery | Weight |
RSFD-2 | 72*42*74mm | CR26500*1 | 305g |
RSFD-3 | 72*42*110mm | CR26500*3 | 345g |
RSFD-4 | 70*61*35mm | CR26500*1 | 198g |
