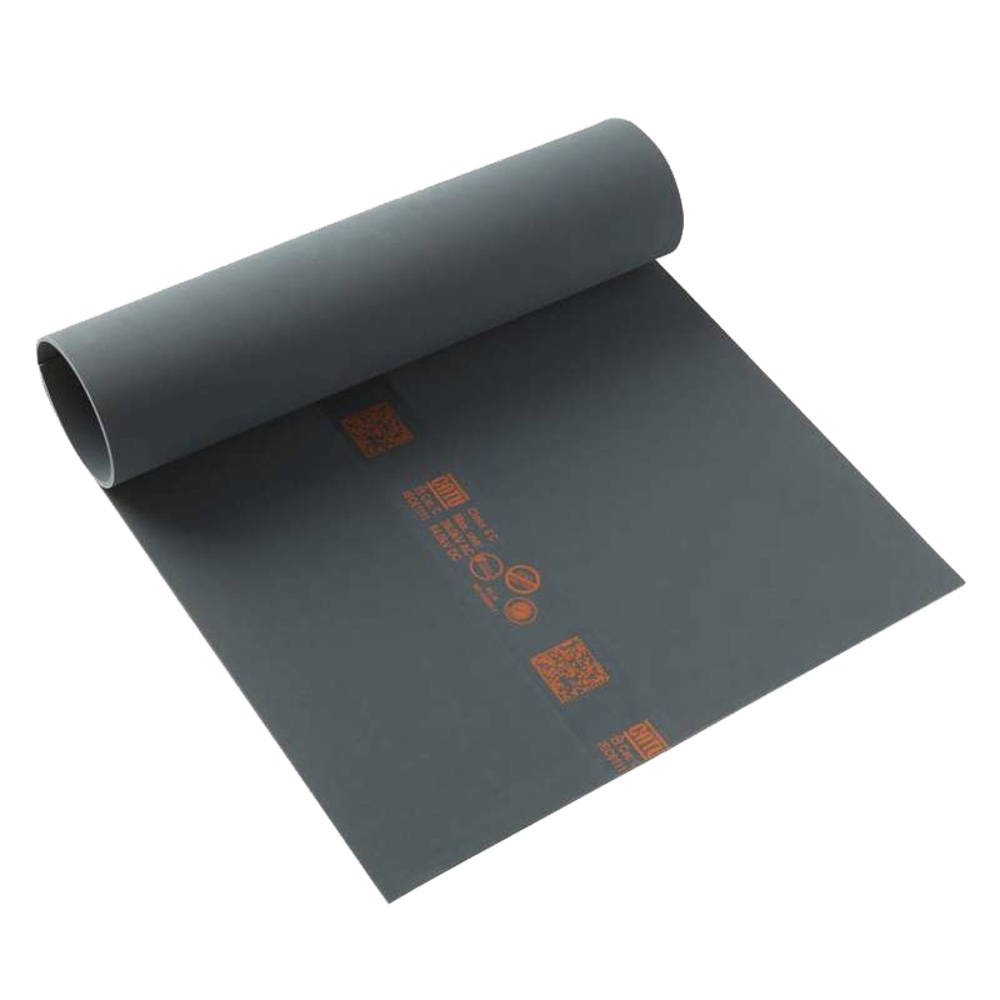

CATU Insulating mat class 4 - width 1 m.

0 ₫
0% Off

CATU Insulating mat class 4 - width 1 m.

1 https://marinesafety.vn/web/image/product.template/6485/image_1920?unique=bd9e735
(0 review)
Days
:
Hours
:
Mins
:
Secs

    Sự kết hợp này không tồn tại.

    Part No:
    ENT-HT583
    Brands: CATU
    Country of Origin: France

    • Best Quality Products
    • Fast - Free shipping
    • Professional

    CATU Electrical Insulating Mats conform to IEC 61111:2009 and are manufactured using high quality elastomer rubber in order to provide complete protection against electric shock, isolating users from potentially life-threatening electrical currents..

    CATU Electrical Insulating Mats are suitable for use in outdoor and indoor applications and are generally placed in front of electrical panels, switch gears & high voltage equipment in order to create a safe working environment for the operators/users.

    The choice of the class must be determined according to the maximal nominal voltage of the network.

    Rigorous testing to conform to the IEC 61111:2009 standard includes:

    • Puncture resistance test • Flame retardance test
    • Dielectric test • Acid resistance test
    • Ageing test • Oil resistance test

    Features :

    • Insulating mat for live and dead working.
    • Class 4 - Maximum operating voltage: 36 000 V AC - 54 000 V DC.
    • Used to cover the floor for the electrical protection of operators in electrical installations.
    • Protect the workers from the ground potential.
    • Must be adapted to the nominal voltage of the network supplying the installation on which it is used.
    • In accordance with IEC 61111:2009 standard and to specific properties of the “C” Category (extremely low temperature folding test at – 40 °C).
    • RoHS2 compliant. REACH compliant (SVHC free).
    • Material: elastomer, halogen free.
    • Thickness: 5mm +/-0.2mm.
    • D bar code (Datamatrix) on marking with direct link to user guide and technical sheet.
    • Storage temperature: +10°C to +21°C.
    • Operating temperature: -40°C to +55°C.
