Basket Stretcher cabinet (JB38)

Dimensions : Height x width x depth: 2350 x 820 x 282 mm                              (92.52 x 32.28 x 11.1″)

Aperture: 2175H x 615W mm (85.63 x 24.21″)

Internal depth: 220 mm (8.66″)

Weight : 32Kg  (70.4Lb)

The JB38 Stretcher cabinets by Jo Bird are widely used on and offshore. This includes oil production platforms, offshore wind substations and hospitals. They are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.
The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 Stainless steel hinges are secured with 316 stainless steel nuts, bolts and washers. The door is fitted with 316 Stainless steel 3 way locking for fast access in an emergency. The door can be specified with left or right hinging.

Typical uses

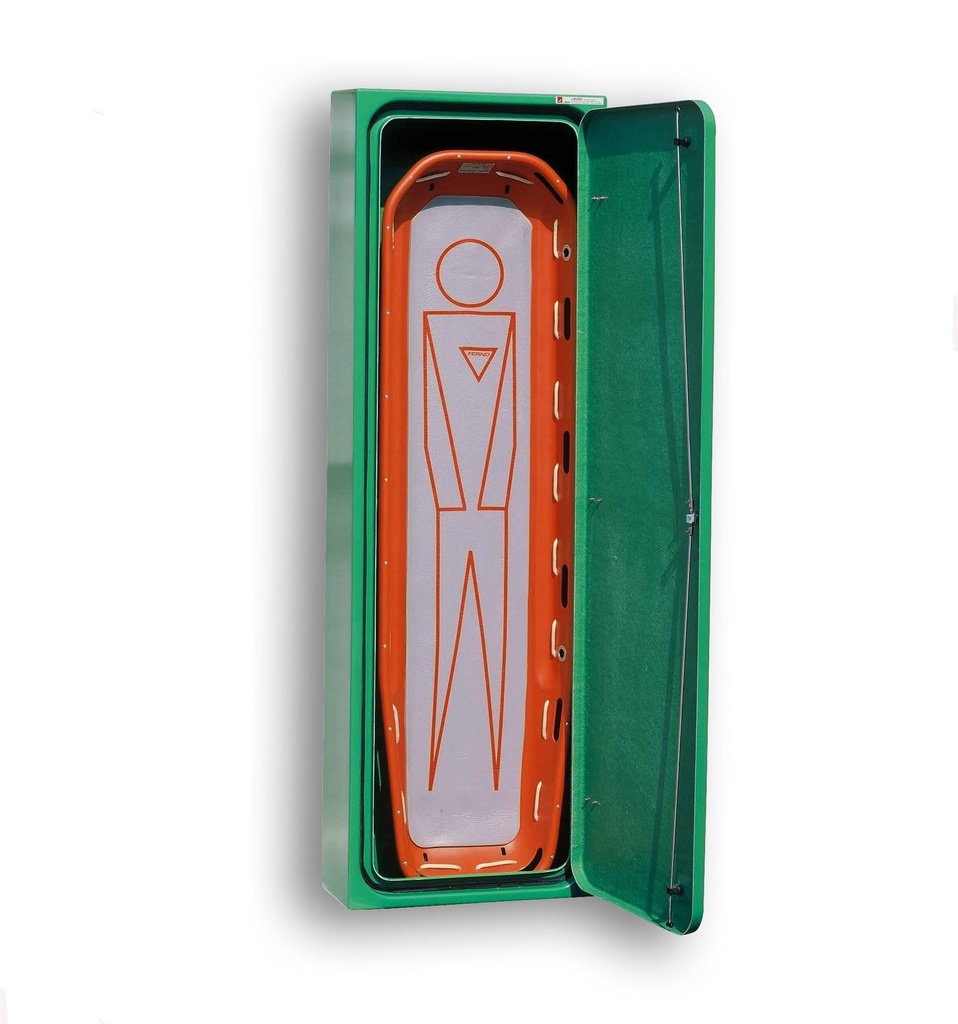

For the storage of 1 x Basket stretcher
designed to cope with extreme environments on and offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Green RAL 6029
Material Lloyds approved composites with UV Stabilised gelcoat
Hinges: 316 Stainless steel
Handle and 3 way locking: 316 Stainless steel
Seal: EPDM

Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Perspex window

Padlockable L handle                                                                                         JB38 Datasheet 2024
