Wema Fuel level gauge

5,500,000 ₫ 5,500,000 ₫
0% Off

Wema Fuel level gauge

1 https://marinesafety.vn/web/image/product.template/3122/image_1920?unique=a9d4b36
(0 review)
Days
:
Hours
:
Mins
:
Secs

    Sự kết hợp này không tồn tại.

    Part No:
    ENT-HT583
    Country of Origin: United Kingdom

    • Best Quality Products
    • Fast - Free shipping
    • Professional

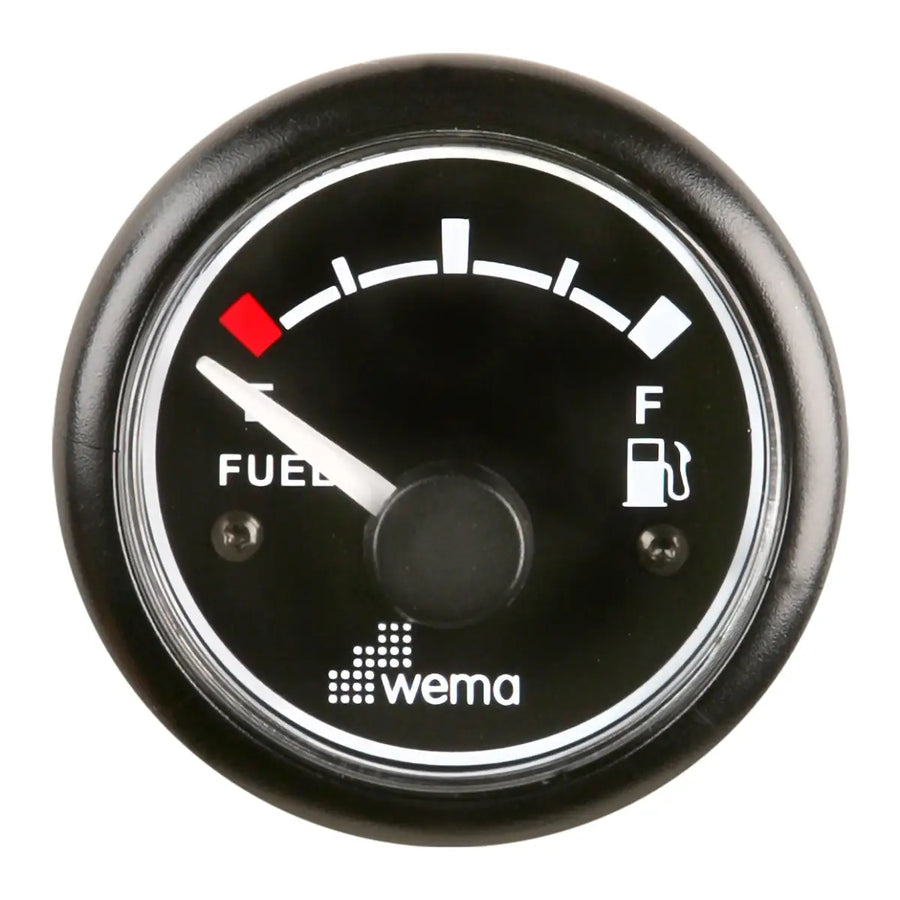

    Analogue fuel level gauge for monitoring of fuel tank level.

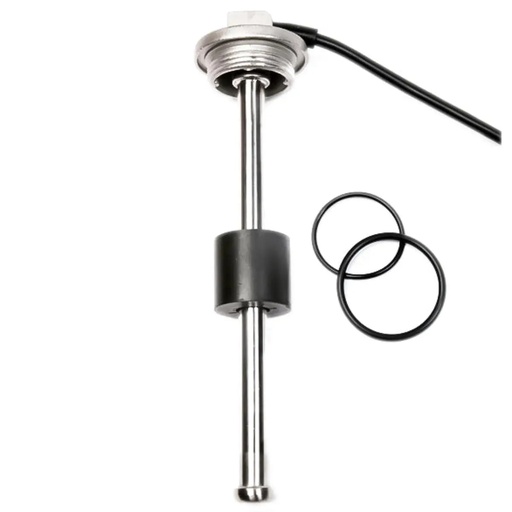

    Works with Wema S3 or S5 senders.  Also works with other senders with matching resistance range.

    Available in European resistance (0-190ohms) or American resistance (240-20ohms) specification.

    Available in all standard face and bezel colours to ensure continuity with all other gauges.

    Fuel Level Gauge Specifications

    • Fuel level

    • 52mm diameter gauge

    • 12v/24v

    • Marine grade - IP67 waterproof

    • 0-190 ohms or 240-30 ohms

    • Backlight - Red or Amber

    • Choice of face & bezel colours

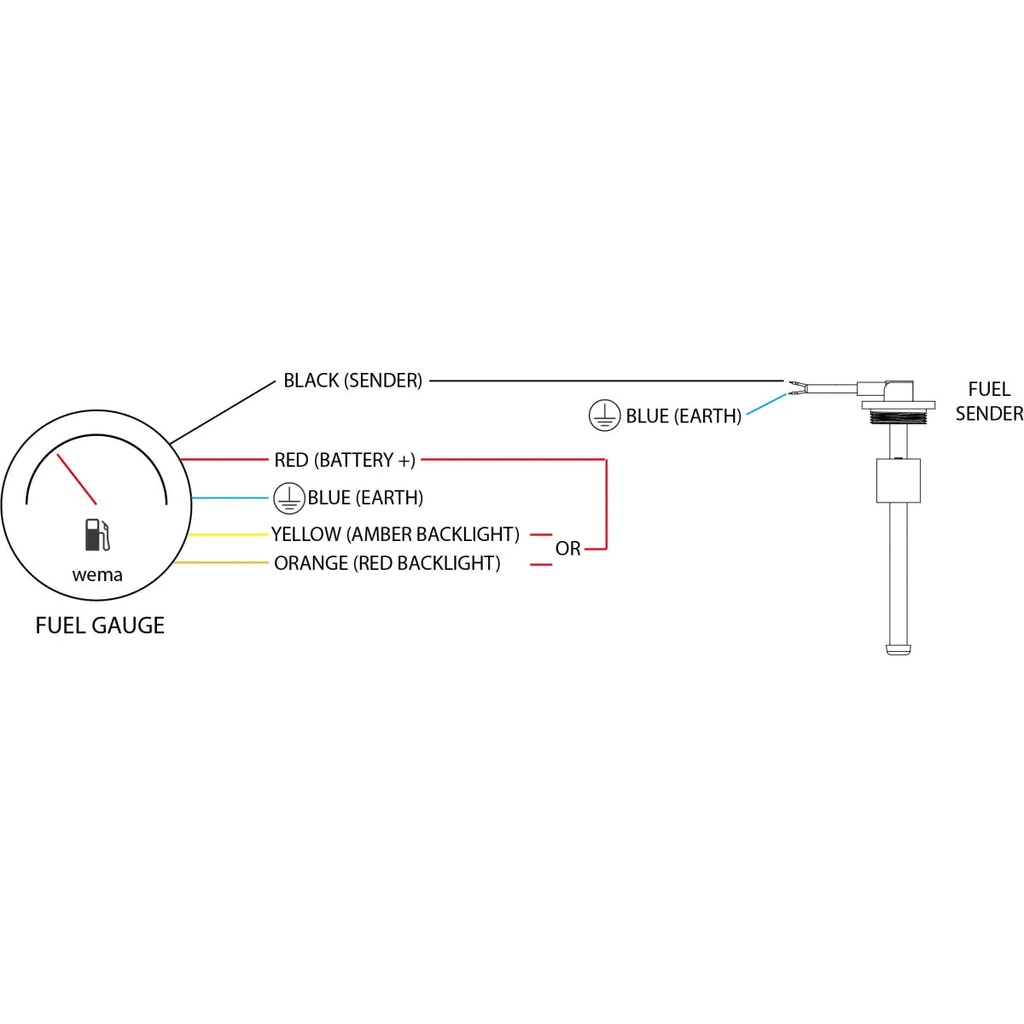

    Wiring Instructions

    Yellow - yellow̴ backlight
    Orange - red backlight
    Black - to sensor
    Red - to positive (battery +)
    Blue - to ground (battery -)
